ANGLE PLANETARY GEARBOX FABZR060 I=10 1:10 23NM SHAFT 16MM GETRIEBE 1:10
ID:
ID26048
Verfügbarkeit:
Vorlaufzeit:
auf Anfrage
Lieferung:
Enter shipping destination
Artikelnummer:
FABZR060I10
- Zustand des Gerätes: neu
- Garantie: 24 MONATE
- Dedizierter Kurier: Ja

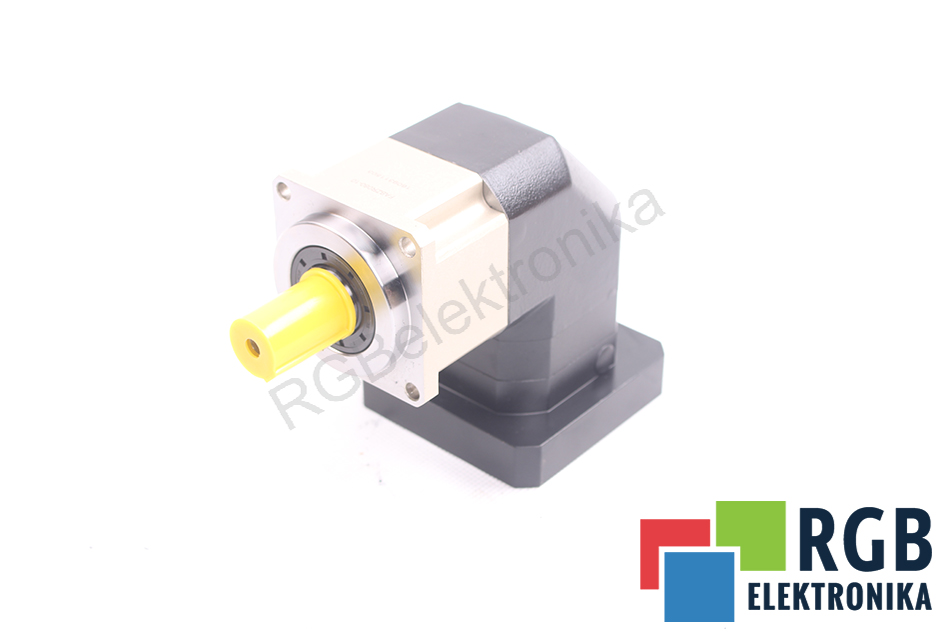

FABZR060 WENLING
Straight FAB and angeled FABR planetary gears are ideal as reducers for
servomotors, thanks to their high quality of manufacture and their small size.
Gears are available in two versions: precise, with a backlash of < 3 arcmin,
and standard, with a backlash of < 5 arcmin.
We offer gearboxes with ratios ranging from 1: 3 to 1:200 and nominal torque
from 14Nm to 2000Nm. Our full range of gears can be found here.
We encourage
you to contact us with any inqueries.
Technical data
| Percifications | FABZR060 |
| Rated output torque T2N | 23 Nm |
| Max output torque T2B | Three times rated output torque |
| Rated input Speed n1 | 5 000 rpm |
| Max input Speed n1B | 10 000 rpm |
| Micro Backlash P0 | - |
| Precision Backlash P1 | ≤ 4 arcmin |
| Precision Backlash P2 | ≤ 6 arcmin |
| Torsional Rigidity | 7 Nm/arcmin |
| Max. Radial Load F 2rB | 1 530 N |
| Max. Axial Load F 2a2B | 765 N |
| Percifications | FABZR060 |
| Max. Axial Load | 630 N |
| Service life | 20 000 hr |
| Efficiency η | ≥ 95% |
| Weight | 2.1 kg |
| Operating Temp. | -10ºC ∼ +90ºC |
| Lubrication | Synthetic Lubricant |
| Protection Index | IP65 |
| Mounting Direction | Any direction |
| Noise Level (n1=3000rpm) | ≤ 63 |
| Inertia (J1) | 0.35 kg/cm² |

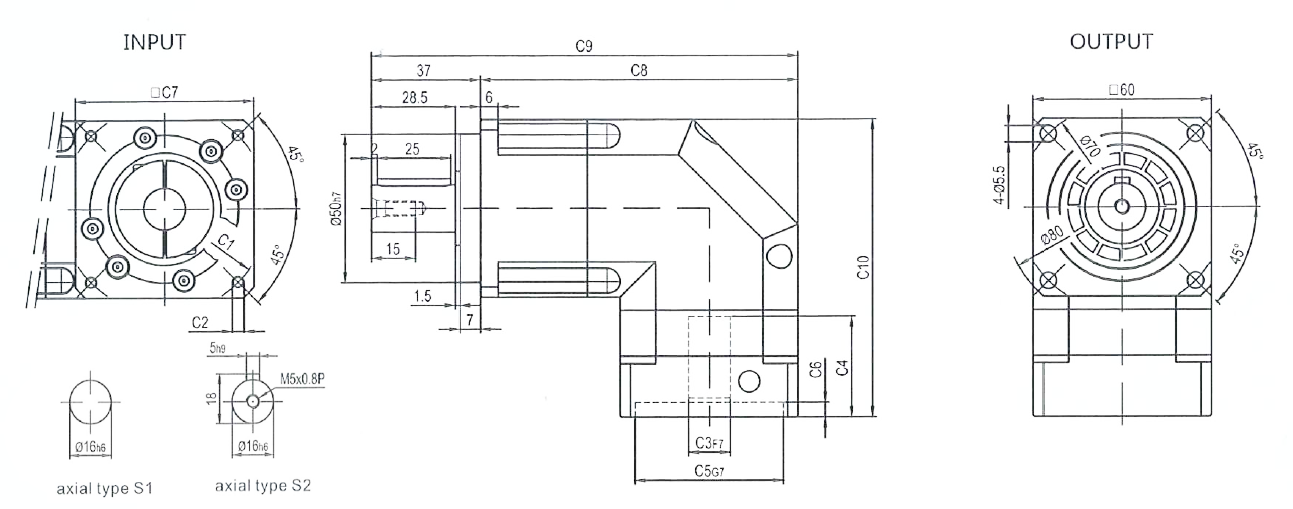

Dimensions
|
| Dimensions | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 |
| FABZR-060 | Ø90 | 4-M5x12 | Ø19 | 44 | Ø70 | 5 | 80 | 117 | 154 | 110,5 |
- Weight [kg] 3.0000
- Height [cm] 19.0
- Length [cm] 23.0
- Width [cm] 20.0
- Model FABZR060
