NEW CNC SYSTEM GSK988T SW.V1.31 GSK
- Product condition: new
- Warranty: 24 MONTHS
- Dedicated courier: yes

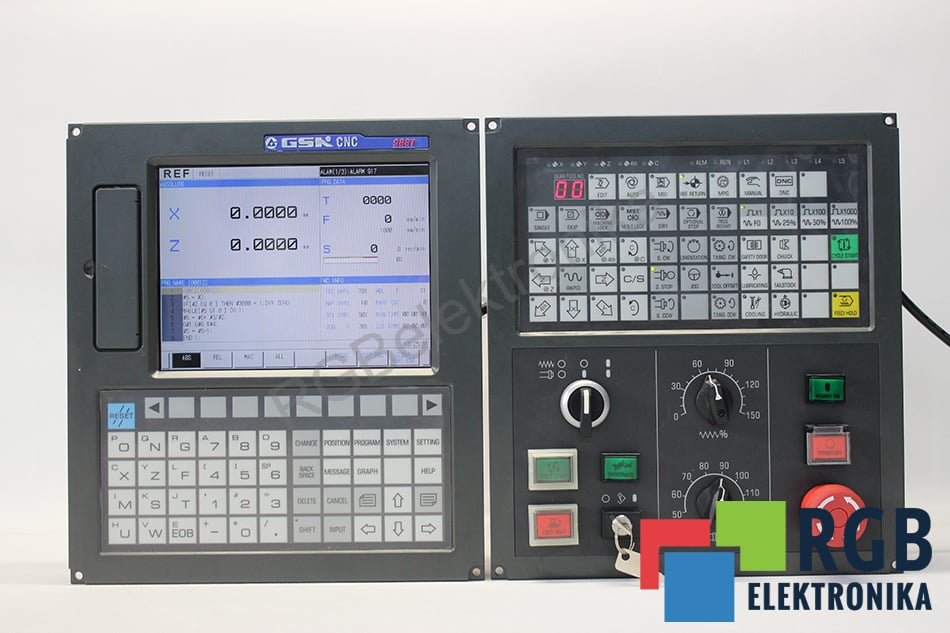

GSK988T
A simple PLC technology based driver, dedicated for turret lathe control
It's perfectly suited for controlling of 5 axes (including CS axis) and 2 spindles. Communication with servomechanisms through a GSK-CAN serial bus. Thanks to a high resolution positioning, it meets the precision processing and turning requirements.
GSK988T is the best choice for a free-standing CNC lathe and advanced machine tool centres.
Technical parameters
| Number of axes | 5 axes (including Cs axis) + 2 spindles |
| Screen | 8.4" LCD |
| Maximum size of a CNC program stored in a driver | 36M |
| Number of digital inputs and outputs | Basic I/O: 40 inputs/ 32 outputs I/O Control Panel: 96 inputs/ 96 outputs |
| Dimensions | 260x290x50 260x290x82.5 |
Features
|
Creating and restoring backup copies of the program and machine data
|
USB interface, ability to update the software
|
|
Fixed, simple, jump, variable scale threading:
|
Possibility of two-spindle operation:
|
|
PLC feature:
|
An example of encasing and wiring in a control cabinet
It's possible of encasing and wiring in a control cabinet shown below. For and additional fee, our service can modernize and start the machine up with the newly purchased GSK controls.
- Weight [kg] 11.0000
- Height [cm] 31
- Length [cm] 46
- Width [cm] 31
- Model GSK988T
