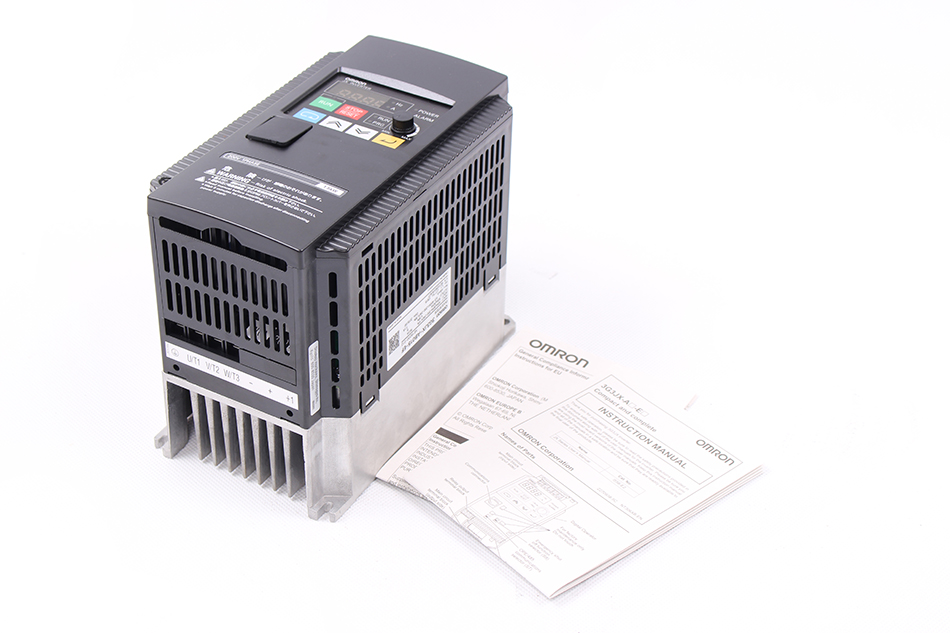

The JX provides a compact and complete solution to a whole range of simple applications. The RS485 Modbus is built into the RJ45 port of the inverter front, making it very easy to add inverters into the network without any extra option boards. Therefore, saving costs and space.
V/f controlled inverter |
Side by side mounting |
Built-in RS-485 Modbus |
Overload detection function (150% during 60 s) |
PID |
Micro-surge voltage supression |
Automatic energy saving |
Emergency shut-off |
Second motor setting |
Auto carrier-frequency reduction |
PTC thermistor input |
Cooling fan switch control |
PC configuration tool: CX-Drive |
CE, UL, cUL, RoHS |
Three-phase: 3G3JX_ | A4004 | A4007 | A4015 | A4022 | A4040 | A4055 | A4075 | ||
Strong Motor kW*1 | Applicable motor capacity | 0.4 | 0.8 | 1.5 | 2.2 | 4.0 | 5.5 | 7.5 | |
Output characteristics | Inverter capacity kVA | 380 V | 0.9 | 1.6 | 2.5 | 3.6 | 5.6 | 8.5 | 10.5 |
480 V | 1.2 | 2.5 | 3.8 | 5.5 | 8.6 | 13.0 | 16.0 | ||
Rated output current (A) | 1.5 | 2.5 | 3.8 | 5.5 | 8.6 | 13.0 | 16.0 | ||
Max. output voltage | Proportional to input voltage: 0...480 V | ||||||||
Max. output freqency | 400 Hz | ||||||||
Power supply | Rated input voltageand frequency | 3-phase 380...480 V 50/60 Hz | |||||||
Rated input current (A) | 2.0 | 3.3 | 5.0 | 7.0 | 11.0 | 16.5 | 20.0 | ||
Allowable voltage fluctuation | -15%...+10% | ||||||||
Allowable frequency fluctuation | +5% | ||||||||
Built-in filter | EMC filter C2 class | ||||||||
Braking torque | At short-time decelaration At capacitor feedback |
Approx. 50% | Approx 20% to 40% | Approx. 20% | |||||
Cooling method | Self cooling | Forced-air-cooling |
