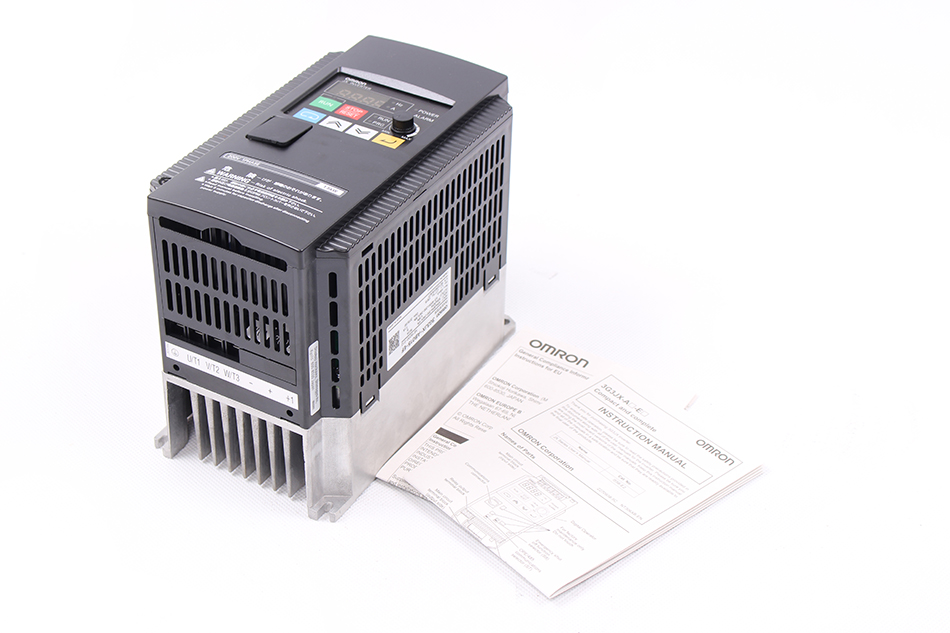

FREQUENZUMRICHTER INVERTER 3G3JX-A4022-EF 3x380-480V 400HZ 2,2KW OMRON
ID:
ID17631
Availability:
Lead time:
to order
Shipping:
Enter shipping destination
SKU:
3G3JXA4022EF
- Product condition: new
- Warranty: 24 MONTHS
- Dedicated courier: yes
3G3JX-A4022-EF
The JX provides a compact and complete solution to a whole range of simple applications. The RS485 Modbus is built into the RJ45 port of the inverter front, making it very easy to add inverters into the network without any extra option boards. Therefore, saving costs and space.
Technical data
| V/f controlled inverter |
| Side by side mounting |
| Built-in RS-485 Modbus |
| Overload detection function (150% during 60 s) |
| PID |
| Micro-surge voltage supression |
| Automatic energy saving |
| Emergency shut-off |
| Second motor setting |
| Auto carrier-frequency reduction |
| PTC thermistor input |
| Cooling fan switch control |
| PC configuration tool: CX-Drive |
| CE, UL, cUL, RoHS |
Specification
| Three-phase: 3G3JX_ | A4004 | A4007 | A4015 | A4022 | A4040 | A4055 | A4075 | ||
| Strong Motor kW*1 | Applicable motor capacity | 0.4 | 0.8 | 1.5 | 2.2 | 4.0 | 5.5 | 7.5 | |
| Output characteristics | Inverter capacity kVA | 380 V | 0.9 | 1.6 | 2.5 | 3.6 | 5.6 | 8.5 | 10.5 |
| 480 V | 1.2 | 2.5 | 3.8 | 5.5 | 8.6 | 13.0 | 16.0 | ||
| Rated output current (A) | 1.5 | 2.5 | 3.8 | 5.5 | 8.6 | 13.0 | 16.0 | ||
| Max. output voltage | Proportional to input voltage: 0...480 V | ||||||||
| Max. output freqency | 400 Hz | ||||||||
| Power supply | Rated input voltageand frequency | 3-phase 380...480 V 50/60 Hz | |||||||
| Rated input current (A) | 2.0 | 3.3 | 5.0 | 7.0 | 11.0 | 16.5 | 20.0 | ||
| Allowable voltage fluctuation | -15%...+10% | ||||||||
| Allowable frequency fluctuation | +5% | ||||||||
| Built-in filter | EMC filter C2 class | ||||||||
| Braking torque | At short-time decelaration At capacitor feedback |
Approx. 50% | Approx 20% to 40% | Approx. 20% | |||||
| Cooling method | Self cooling | Forced-air-cooling |
|||||||
JX configuration
- Weight [kg] 3.0000
- Power rate [kW] 2,2
- Max output frequency 400HZ
- Input Voltage [V] 400
- Input phases 3
- Model 3G3JX-A4022-EF
Produkt występuje również pod oznaczeniem:
3G3JXA4022EF, 3G3JXA4022 EF, 3G3JXA4022-EF, 3G3JX A4022EF, 3G3JX A4022 EF, 3G3JX A4022-EF, 3G3JX-A4022EF, 3G3JX-A4022 EF, 3G3JX-A4022-EF
