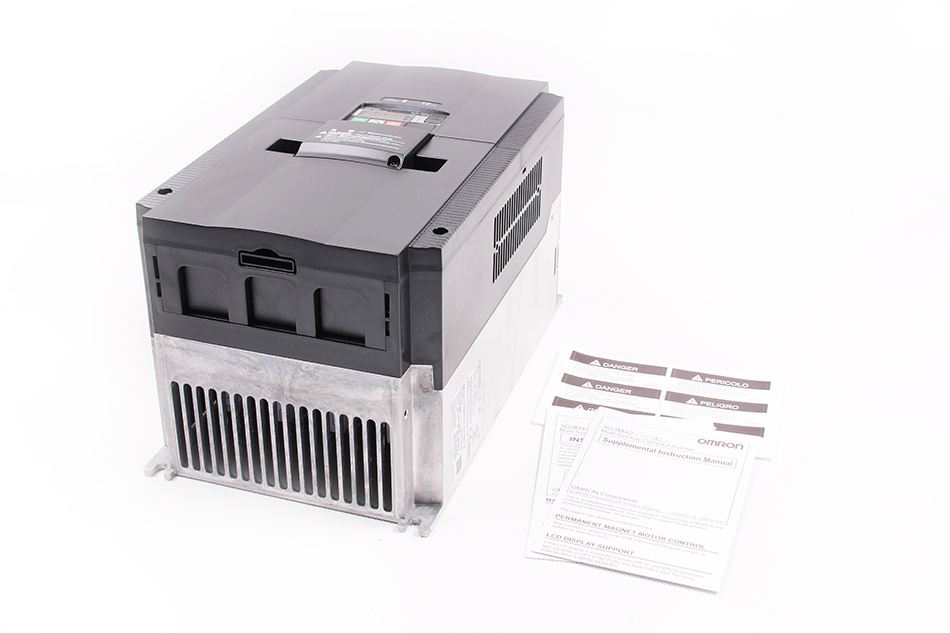

FREQUENZUMRICHTER INVERTER 3G3MX2-A4150-E 3x380-480V 400HZ 15KW OMRON

ID: ID18097
Availability: Product available on request
Lead time: to order
SKU: 3G3MX2A4150E
  • Product condition: new
  • Warranty: 24 MONTHS
  • Dedicated courier: yes
new NEW

Do you need this product?

We will deliver it to you in an express way! Get in touch with us:

24/7 📞 +48 717 186 939

📩 [email protected]

3G3MX2-A4150-E

Specifically designed for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms, the MX2 provides smooth control down to zero speed, plus precise operation for cyclic operations and torque control capability in open loop. By using the standard MX2 series functionality and communication option boards, the MX2 IP54 is the perfect choice for your standalone inverter solutions.

Technical data

Up to 15 kW
200% starting torque
Torque control in open loop
Double rating VT 120%/1 min and CT 150%/1 min
IM & PM motor control
Safety conforming to ISO13849-1 Category3 performance level PLD
Built-in Logic programming
Positioning functionality
Integrated at Omron machine Automation solution
Fieldbus communications: EtherCAT, Modbus, DeviceNet, Profibus, CompoNet, MECHATROLINK-II and EtherNet/IP

Specification

Three-phase: 3G3MX2_ 4004 4007 4015 4022 4030 4040 4055 4075 4110 4150
Motor kW*1 For VT setting 0.75 1.5 2.2 3.0 4.0 5.5 7.5 11 15 18.5
For CT setting 0.4 0.75 1.5 2.2 3.0 4.0 5.5 7.5 11 15
Output characteristics Inverter capacity kVA 380 VT 1.3 2.6 3.5 4.5 5.7 7.3 11.5 15.1 20.4 25.0
380 CT 1.1 2.2 3.1 3.6 4.7 6 9.7 11.8 15.7 20.4
480 VT 1.7 3.4 4.4 5.7 7.3 9.2 14.5 19.1 25.7 31.5
480 CT 1.4 2.8 3.9 4.5 5.9 7.6 12.3 14.9 19.9 25.7
Rated output current (A) at VT 2.1 4.1 5.4 6.9 8.8 11.1 17.5 23.0 31.0 38.0
Rated output current (A) at CT 1.8 3.4 4.8 5.5 7.2 9.2 14.8 18.0 24.0 31.0
Max. output voltage Proportional to input voltage: 0...480 V
Max. output freqency 400 Hz
Power supply Rated input voltageand frequency Three-phase 380...480 V 50/60 Hz
Allowable voltage fluctuation -15%...+10%
Allowable frequency fluctuation +5%
Braking torque At short-time decelaration

At capacitor feedback
100%:<50hz

50%:<60hz
70%:
<50hz
50%:
<60hz
-
Cooling method Self cooling*2 Forced-air-cooling
*1 - Three phase model use forced-alr-cooling bust single phase model is self cooling.
*2 - Based on a standard 3-Phase standatd motor.
*3 - Forced air cooling for IP54 models.

MX2 configuration

  • Weight [kg] 6.0000
  • Height [cm] 24.0
  • Length [cm] 41.0
  • Width [cm] 29.0
  • Power rate [kW] 15
  • Max output frequency 400HZ
  • Input Voltage [V] 400
  • Input phases 3
  • Model 3G3MX2-A4150-E

Produkt występuje również pod oznaczeniem:

3G3MX2A4150E, 3G3MX2A4150 E, 3G3MX2A4150-E, 3G3MX2 A4150E, 3G3MX2 A4150 E, 3G3MX2 A4150-E, 3G3MX2-A4150E, 3G3MX2-A4150 E, 3G3MX2-A4150-E
