NEW 6203-2Z/C3 BEARING SKF
- Product condition: new
- Warranty: 24 MONTHS
- Dedicated courier: yes
Related Products
Choose

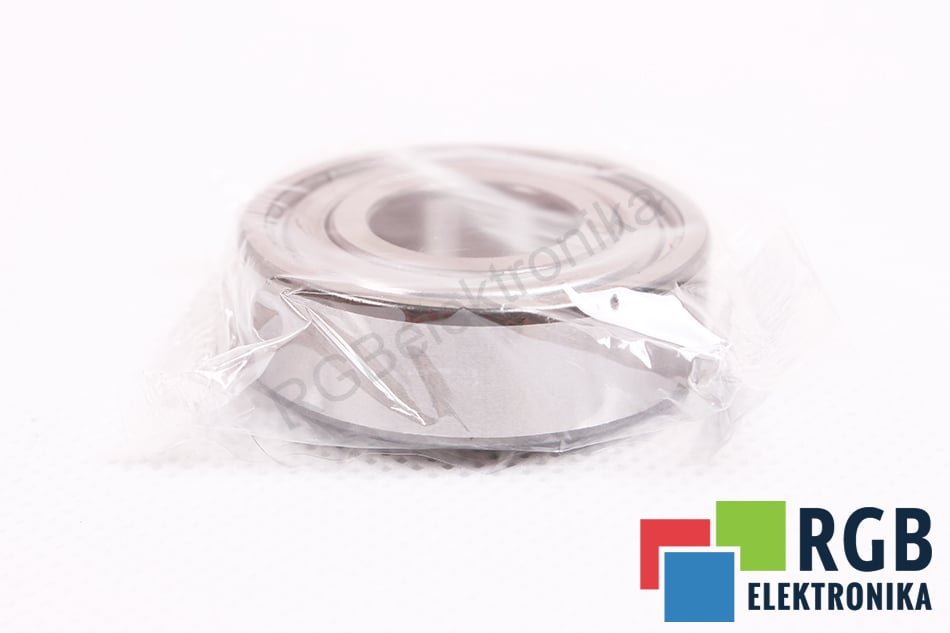

6203-2Z/C3 SKF
Deep-groove ball bearings are particularly versatile. They are simple in design, non-separable, suitable for high and very high speeds and are robust in operation, requiring little maintenance.
Technical Data
| Dimensions (mm) | d | 17 |
| D | 40 | |
| B | 12 | |
| Load rate (kN) | Basic dynamic C | 10 |
| Basic static C0 | 4.8 | |
| Speed (obr./min) | Reference | 19000 |
| Limiting | 38000 | |
| Symbol | Bearing | 6203-2Z/C3 |
Our offer includes the worlds's largest bearing manufacturers such as SKF or FAG. All bearings available in our stock
If you could not find proper bearing model please contact us - we are able to provide practically every kind of bearings in a short time.
- Weight [kg] 1.0000
- Height [cm] 2.0
- Length [cm] 5.0
- Width [cm] 5.0
- Model 6203-2Z/C3
- Outer diameter D [mm] 40
- Inner diameter d [mm} 17
- Width B [mm] 12
- Basic dynamic load rating C [kN] 10
- Basic static load rating C0 [kN] 4.8
- Bearing limiting speed [r/min] 38000
- Bearing reference speed [r/min] 19000
Produkt występuje również pod oznaczeniem:
62032ZC3, 62032Z C3, 62032Z/C3, 6203 2ZC3, 6203 2Z C3, 6203 2Z/C3, 6203-2ZC3, 6203-2Z C3, 6203-2Z/C3
