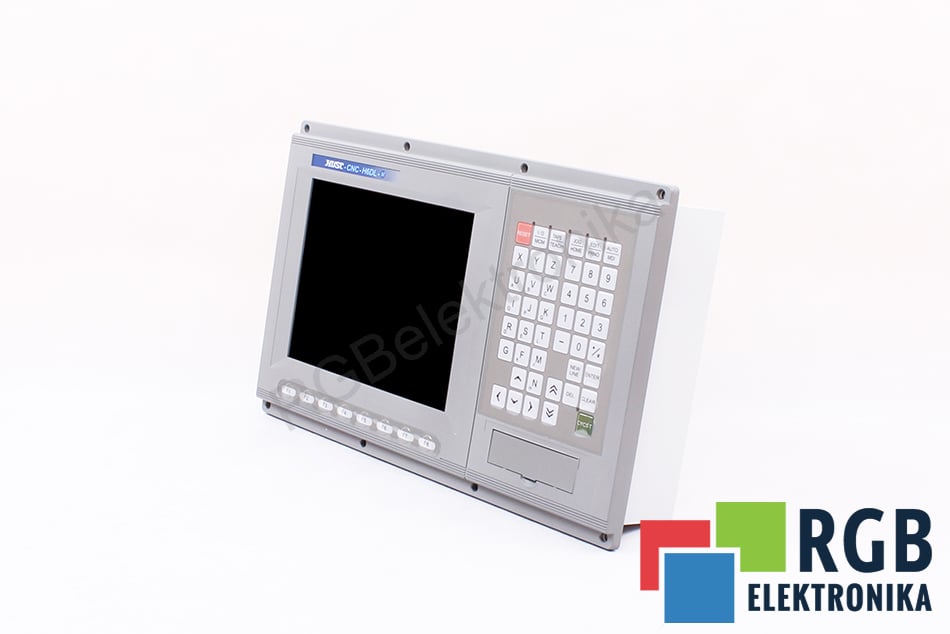

CNC CONTROLLER FOR MILLING MACHINE 5 AXES + SPINDLE H6DL-M5 HUST
- Product condition: new
- Warranty: 24 MONTHS
- Dedicated courier: yes
Related Products
ChooseH6DL-M5
PLC technology based driver, dedicated for 5-axis CNC milling machine control.
HUST controls H6DL-M5 series are ideally suited for machine retrofitting and are an attractive alternative for other controls.
Chosing HUST systems, you bet on:
Functionality - accessories like an additional operator button panel, digital output modules and thyristor and scattered I/O islands, allow for a flexibility, when meeting user's needs. Simplicity - trouble-free installation and intuitive handling allow for a quick H6DL-M5 system implementation.
Reliability - high precision, stable operation.
The number of axes can be reduced in the software on the client's request.
Technical parameters
Number of axes | 5+1 (5 axes + spindle), spindle control through encoder |
Number of digital inputs and outputs | Fast and simple input and output diagnostics (48in/32out) |
Maximum size of a CNC program stored in a driver | 500K (bigger programs in packages from external media) |
Number of tools in system memory | up to 40 tools in system memory for different stamps and arrays |
Dimensions | 438x248x73.5 |
Features
ISO programming, G-cod i M-cod features | Macro programs for basic operations |
Stop and Feed hold features | Auto-diagnostics and error signalling features |
Ability to load a program from PC using a USB drive or RS | Master/Slave follow feature |
Axis error offset | Position retaining after emergency power outage |
X, Y, Z axis and spindle with an encoder loop control | Incremental or absolute coordinate mode operation |
H6DL-M5 schematics
- Weight [kg] 10.3000
- Height [cm] 29.0
- Length [cm] 59.0
- Width [cm] 43.0
- Model CNC H6DL-M5
Produkt występuje również pod oznaczeniem:
CNCH6DLM5, CNCH6DL M5, CNCH6DL-M5, CNC H6DLM5, CNC H6DL M5, CNC H6DL-M5
