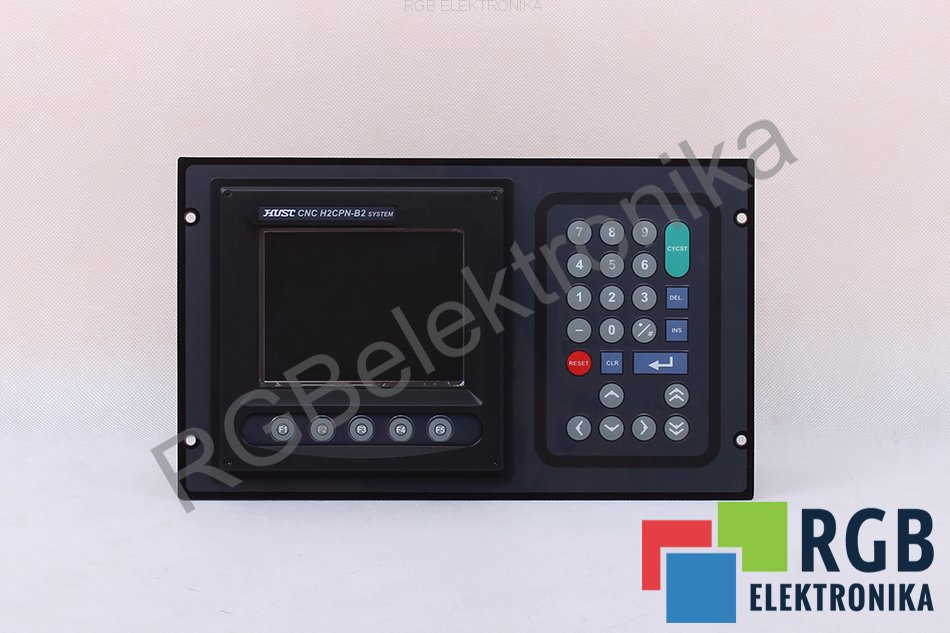

NEW H2CPN-B2 2 AXIS CNC PRESS BRAKE CONTROL HUST
- Product condition: new
- Warranty: 24 MONTHS
- Dedicated courier: yes
H2CPN-B2
A simple PLC technology based driver, dedicated for 2-axis CNC press
control.
HUST controls H2CPN-B2 series are ideally suited for machine
retrofitting and are an attractive alternative for other controls.
Chosing HUST
systems, you bet on: Functionality - accessories like an additional operator button
panel, digital output modules and thyristor and scattered I/O islands, allow for a flexibility, when meeting
user's needs. Simplicity - trouble-free installation and intuitive handling allow for
a quick H2CPN-B2 system implementation. Reliability - high precision, stable
operation.
Technical parameters
| Number of axes | 2 |
| Screen | 5.6" LCD |
| Setting movement signal | Setting movement signal impulse Pull/Dir |
| Maximum size of a CNC program stored in a drive | 512K |
| Number of digital inputs and outputs | Fast and simple input and output diagnostics (28in/20out) |
| Dimensions | 267x172x75mm |
Features
| Auto Run and Feed Hold | Master/Slave follow features. Simultaneous 2-axis movement |
| Program can be adjusted in AUTO-RUN time | Ability to load a program from keyboard |
| X, D axis control. One axis with an encoder loop | Position retaining after emergency power outage. |
H2CPN-B2 schematics
- Weight [kg] 5.5000
- Height [cm] 27
- Length [cm] 50
- Width [cm] 36
- Model CNC H2CPN-B2
