SERVOMOTOR WITH BRAKE 1KW 4NM 2500RPM WITH SERVO DRIVER 1KW 3X220V
ID:
ID59998
Disponibilité:
Délai de mise en œuvre:
sur demande
Livraison:
Vérifier le coût de livraison
Réf.:
80SYM04025BSGAS15AFNEW
- État de l'appareil : neuf
- Garantie : 24 MOIS
- Coursier spécialisé : oui
Sélectionner

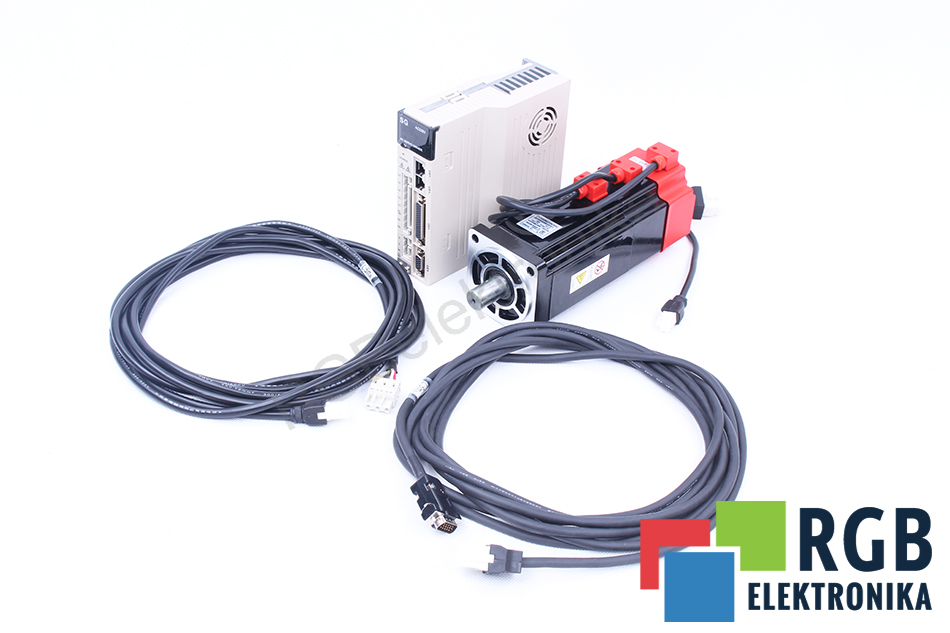

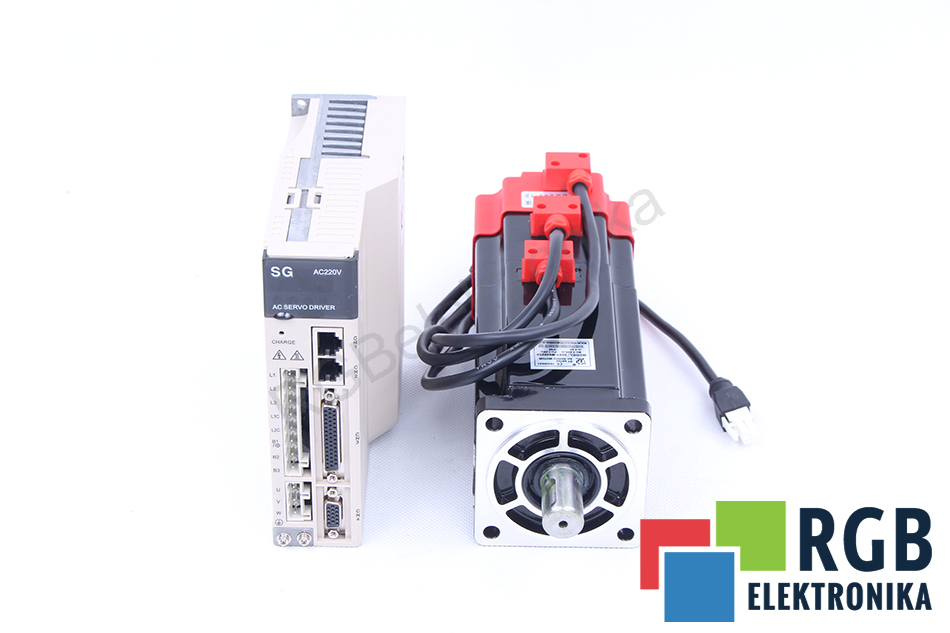

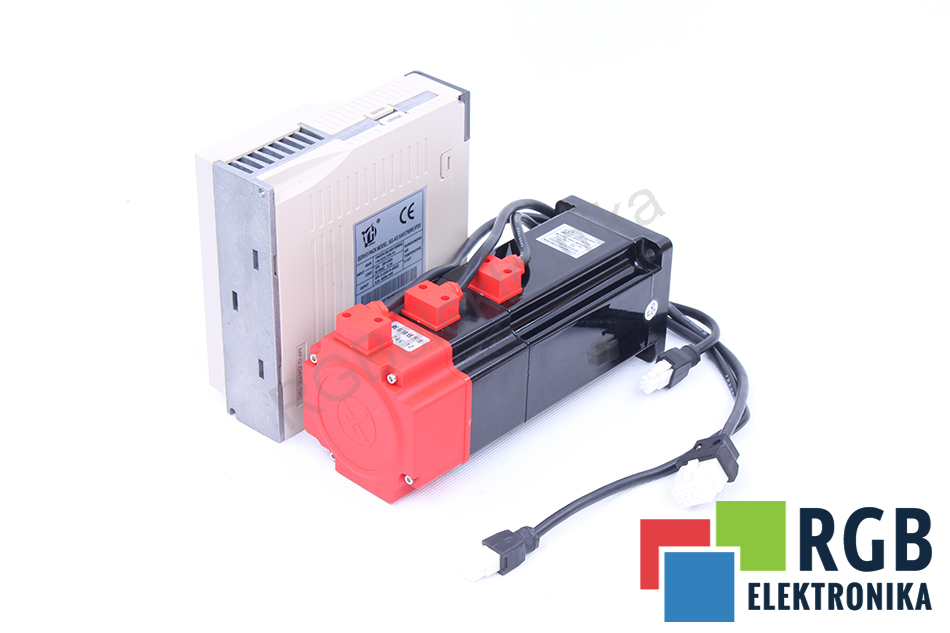

SERVOMOTOR WITH BRAKE 1KW + SERVODRIVE 1KW
Servoamplifiers and servomotors have been widely used for many years in nearly every industry. CNC machines, packaging machines, textile machines and 3D printers - these are just a few examples of devices that make use of servomotors and servodrives. Every servo drive must be of the highest quality worksmanship and be resistant to harsh industrial environments. If you are having problems selecting an appropriate drive, please don't hesitate to contact us!
Our servo kits come with a 12-month guarantee, with service to be carried out at our site in Wroclaw.
Technical data

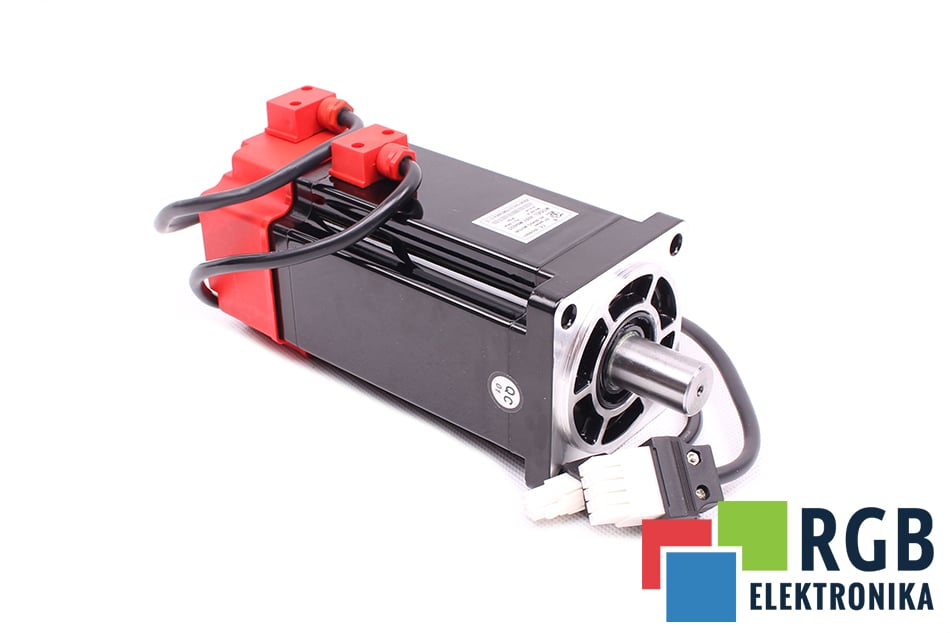

| SERVO MOTOR 80SY-M04025-B | |
| Rated Power, kW | 1 |
| Rated Current, A | 4,2 |
| Rated Torque, Nm | 4 |
| Max Torque, Nm | 10 |
| Rated Speed, rpm | 2500 |
| Frame Size, mm | 80x80 |
| Max Speed, rpm | 2700 |
| Rotor Inertia, Kg m² | 3,45*10^(-4) |
| Encoder | Tamagawa 2500ppr |
| Input Voltage, V | 3x220V |
| Motor length, mm | 180 |
| Motor weight, kg | 4 |
| Brake | Yes |
| Wiring | Encoder Cable 5m, power cable 5m |
| Additional accessories | Shaft key, spare connector, connector housing, pins |

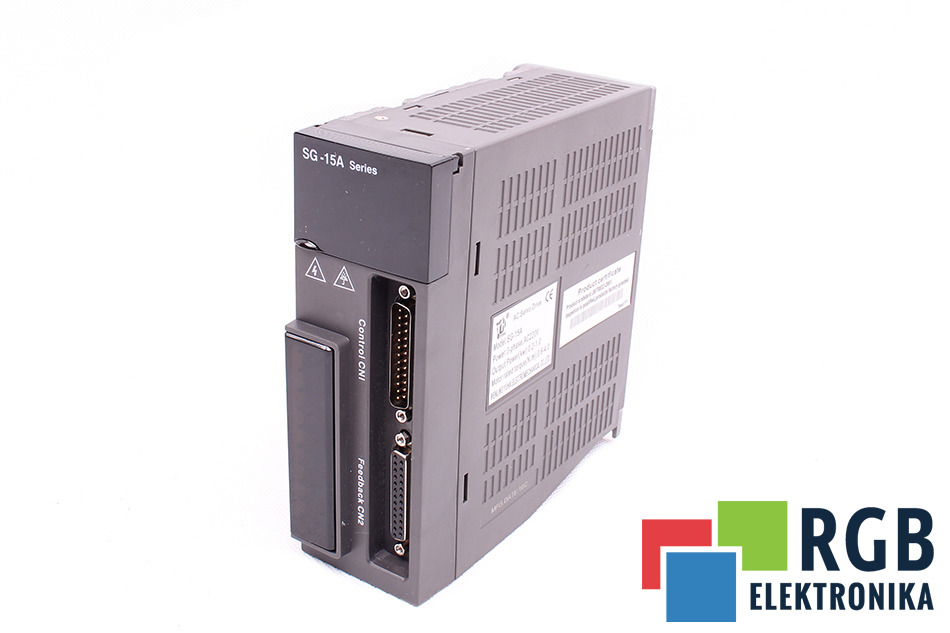

| SERVODRIVE | SG-AS15AF | |
| Output power, kW | 0.4-1 | |
| Control mode | Position control, JOG operation, speed contacts, etc. | |
| Encoder feedback | Ordinary incremental encoder: 2500 lines incremental standard type 2500 line incremental province-wire serial encoder: 217/216 bit absolute encoder | Conditions of Use | Ambient temperature / storage temperature | Ambient temperature: 0 ~ + 50 ℃ Storage temperature: -20 ~ + 85 ℃ |
| Humidity / storage humidity | 90% RH or less (no freezing or condensation) | |
| Resistance to vibration / impact resistance | 4.9m/s2/19,6m/s2 | |
| Structure | Base mount | |
| Performance | Speed control range | 1:10000(Lower limit of the speed control range is the smooth operation at rated load without crawling) |
| Speed response | 1KHz | |
| Rate volatility (load variation) | 0 to 100% load; 0% (rated speed) | |
| Rate volatility (voltage variation) | Rated voltage ± 10%: 0% (rated speed) | |
| Rate volatility (temperature variation) | 25 ± 25 ℃: ± 0.1% or less (rated speed) | Sequence input signal | Count | 8Point |
| Function (distribution) | Servo ON (/ S-ON), P action (/ P-CON), prohibits Story side driving (P-OT), prohibiting reverse side driving (N-OT), alarm reset () / ALM-RST, positive Zhuance torque limit (/ P-CL), reverse the measured torque limit (/ N-CL), the position deviation is cleared (/ CLR), the internal set speed switching can be allocated and the signal of the positive / negative logic change | Sequence output signal | Count | 6Point |
| Function (distribution) | Servo alarm () ALM positioning completion (/ COIN) consistent speed detection (/ V-COMP) servo motor rotation detection (/ TGON) Servo ready (/ S-RDY), torque limit detection (/ CLT) Brakes (/ BK) encoder zero output (PGC) can be assigned as well as the positive / negative logic of the signal change | |
| Encoder Dividing pulse output | A phase, B phase, C: linear drive output; divider pulses: can be arbitrarily set | RS-485Communications | Protocol | MODBUS |
| Axis address setting | By parameter setting | |
| 1：N Communication | Can be up to N = 127 station | CANCommunications | Protocol | CANOpen (DS301 + DS402 profile) |
| Axis address setting | Can be up to N = 127 station | |
| 1：N Communication | By parameter setting | |
| Display Function | CHARGE LED, 7-segment 5 | |
| Regeneration treatment | Built-in regenerative resistor or external regenerative resistor (optional) | |
| Overtravel (OT) prevention function | P-OT、N-OT Enter the action of dynamic brake (DB) stop, deceleration stop or free-run stop | |
| Protection | Overcurrent, overvoltage, undervoltage, overload, speeding, regeneration fault, encoder feedback error, etc. | |
| Monitoring functions | Speed, current position, command pulse accumulation, position deviation, motor current, operating status, input and output signals | |
| Accessibility Features | Gain adjustment, alarm recording, JOG operation, origin search, inertia testing | |
| Smart features | Built-in automatic gain tuning function | |
| Use load inertia | Less than 5 times of motor inertia | |
| Position control | Feedforward compensation | 0~100%(Setting unit 1%) |
| Input pulse types | Sign + pulse train, CW + CCW pulse train, 90 ° phase difference between the two-phase pulse (A phase + B phase) | |
| Input pulse form | Supports linear drive, open collector | |
| Maximum input pulse frequency | ||
| Linear drive | ||
| Sign + pulse train, CW + CCW pulse sequence: 500K pps | ||
| 90 ° phase difference between the two-phase pulse (A phase + B-phase): 500K pps | ||
| Open Collector | ||
| Sign + pulse train, CW + CCW pulse sequence: 200K pps | ||
FLEXIBLE PLUM COUPLINGS
Our stock includes a wide range of flexible plum couplings, which perfectly match our available servomotors. All available couplings can be found at our online store.
CHECK OTHER TYPES!
Products are available in several versions. If a motor has too little power or torque, an alternative product can be found.
If you have damaged servomotors or servo drives, we offer you our services. All information on industrial automation repair at our company can be found at - www.rgbelektronika.pl
- Weight [kg] 8.0000
- Height [cm] 33.0
- Length [cm] 30.0
- Width [cm] 32.0
- Modèle 80SY-M04025-B + SG-AS15AF
