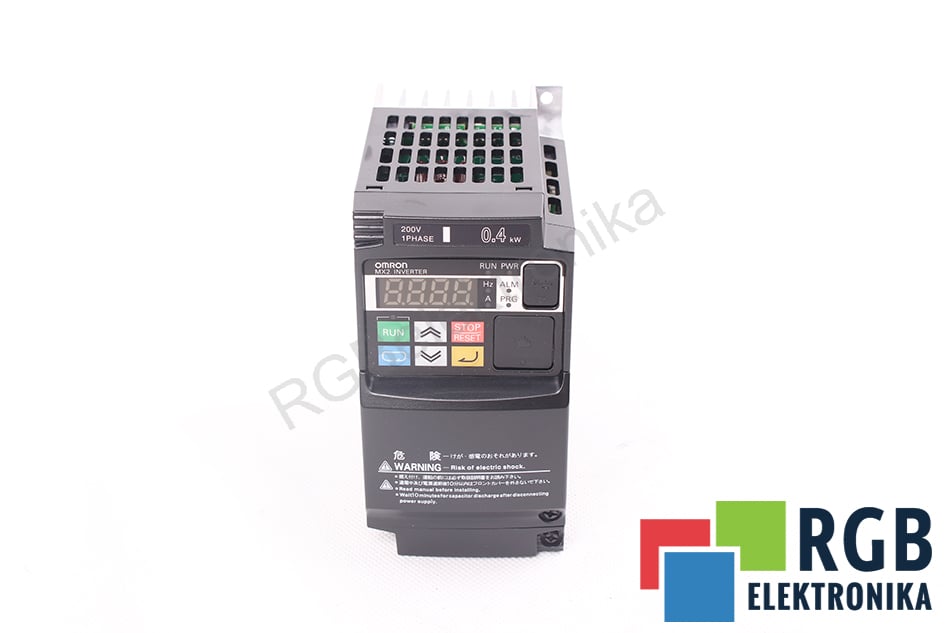

Specifically created for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms, the MX2 provides smooth control down to zero speed, plus precise operation for cyclic operations and torque control capability in open loop. By using the standard MX2 series functionality and communication option boards, the MX2 IP54 is the perfect choice for your standalone inverter solutions.
Up to 15 kW |
200% starting torque |
Torque control in open loop |
Double rating VT 120%/1 min and CT 150%/1 min |
IM & PM motor control |
Safety conforming to ISO13849-1 Category3 performance level PLD |
Built-in Logic programming |
Positioning functionality |
Integrated at Omron machine Automation solution |
Fieldbus communications: EtherCAT, Modbus, DeviceNet, Profibus, CompoNet, MECHATROLINK-II and EtherNet/IP |
Single-phase: 3G3MX2_ | B001 | B002 | B004 | B007*1 | B015 | B022 | - | - | - | - | - | ||
Three-phase: 3G3MX2_ | 2001 | 2002 | 2004 | 2007 | 2015 | 2022 | 2037 | 2055 | 2075 | 2110 | 2150 | ||
Motor kW*2 | For VT setting | 0.2 | 0.4 | 0.55 | 1.1 | 2.2 | 3.0 | 5.5 | 7.5 | 11 | 15 | 18.5 | |
For CT setting | 0.1 | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | ||
Output characteristics | Inverter capacity kVA | 200 VT | 0.4 | 0.6 | 1.2 | 2.0 | 3.3 | 4.1 | 6.7 | 10.3 | 13.8 | 19.3 | 23.9 |
200 CT | 0.2 | 0.5 | 1.0 | 1.7 | 2.7 | 3.8 | 6.0 | 8.6 | 11.4 | 16.2 | 20.7 | ||
240 VT | 0.4 | 0.7 | 1.4 | 2.4 | 3.9 | 4.9 | 8.1 | 12.4 | 16.6 | 23.2 | 28.6 | ||
240 CT | 0.3 | 0.6 | 1.2 | 2.0 | 3.3 | 4.5 | 7.2 | 10.3 | 13.7 | 19.5 | 24.9 | ||
Rated output current (A) at VT | 1.2 | 1.9 | 3.5 | 6.0 | 9.6 | 12.0 | 19.6 | 30.0 | 40.0 | 56.0 | 69.0 | ||
Rated output current (A) at CT | 1.0 | 1.6 | 3.0 | 5.0 | 8.0 | 11.0 | 17.5 | 25.0 | 33.0 | 47.0 | 60.0 | ||
Max. output voltage | Proportional to input voltage: 0...240 V | ||||||||||||
Max. output freqency | 400 Hz | ||||||||||||
Power supply | Rated input voltageand frequency | Single-phase 200...240 V 50/60 Hz; Three-phase 200...240 V 50/60 Hz | |||||||||||
Allowable voltage fluctuation | -15%...+10% | ||||||||||||
Allowable frequency fluctuation | +5% | ||||||||||||
Braking torque | At short-time decelaration At capacitor feedback | 100%:<50hz 50%:<60hz | 70%: <50hz 50%: <60hz | Approx 20% | - | ||||||||
Cooling method | Self cooling*3 | Forced-air-cooling |
