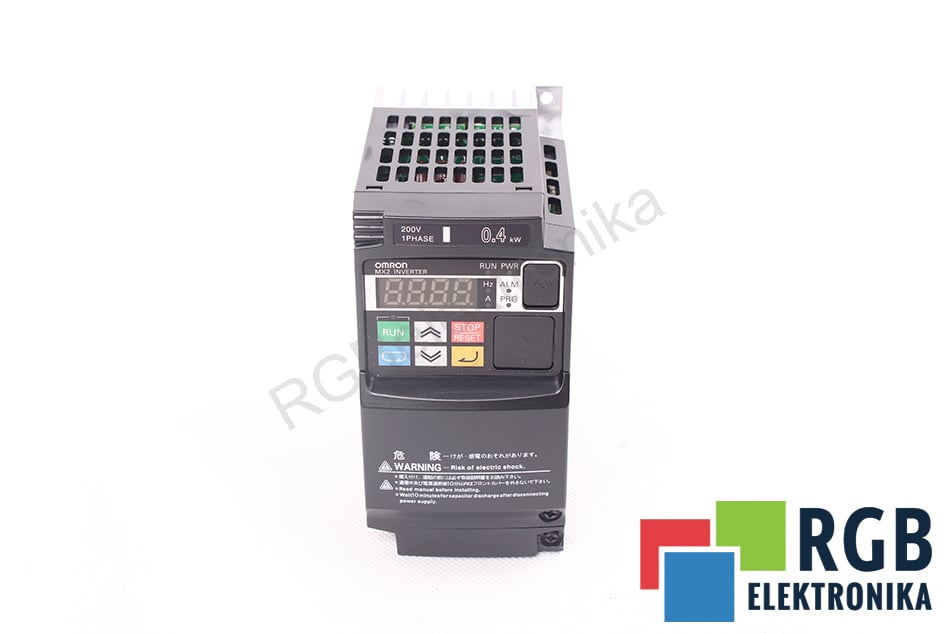

FREQUENZUMRICHTER INVERTER 3G3MX2-AB007-E 1x200-240V 400HZ 0,75KW OMRON
ID:
ID36164
Verfügbarkeit:
Vorlaufzeit:
auf Anfrage
Lieferung:
Enter shipping destination
Artikelnummer:
3G3MX2AB007E
- Zustand des Gerätes: neu
- Garantie: 24 MONATE
- Dedizierter Kurier: Ja
Zubehör
Wahlen Sie
3G3MX2-AB007-E
Specifically created for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms, the MX2 provides smooth control down to zero speed, plus precise operation for cyclic operations and torque control capability in open loop. By using the standard MX2 series functionality and communication option boards, the MX2 IP54 is the perfect choice for your standalone inverter solutions.
Technical data
| Up to 15 kW |
| 200% starting torque |
| Torque control in open loop |
| Double rating VT 120%/1 min and CT 150%/1 min |
| IM & PM motor control |
| Safety conforming to ISO13849-1 Category3 performance level PLD |
| Built-in Logic programming |
| Positioning functionality |
| Integrated at Omron machine Automation solution |
| Fieldbus communications: EtherCAT, Modbus, DeviceNet, Profibus, CompoNet, MECHATROLINK-II and EtherNet/IP |
Specification
| Single-phase: 3G3MX2_ | B001 | B002 | B004 | B007*1 | B015 | B022 | - | - | - | - | - | ||
| Three-phase: 3G3MX2_ | 2001 | 2002 | 2004 | 2007 | 2015 | 2022 | 2037 | 2055 | 2075 | 2110 | 2150 | ||
| Motor kW*2 | For VT setting | 0.2 | 0.4 | 0.55 | 1.1 | 2.2 | 3.0 | 5.5 | 7.5 | 11 | 15 | 18.5 | |
| For CT setting | 0.1 | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | ||
| Output characteristics | Inverter capacity kVA | 200 VT | 0.4 | 0.6 | 1.2 | 2.0 | 3.3 | 4.1 | 6.7 | 10.3 | 13.8 | 19.3 | 23.9 |
| 200 CT | 0.2 | 0.5 | 1.0 | 1.7 | 2.7 | 3.8 | 6.0 | 8.6 | 11.4 | 16.2 | 20.7 | ||
| 240 VT | 0.4 | 0.7 | 1.4 | 2.4 | 3.9 | 4.9 | 8.1 | 12.4 | 16.6 | 23.2 | 28.6 | ||
| 240 CT | 0.3 | 0.6 | 1.2 | 2.0 | 3.3 | 4.5 | 7.2 | 10.3 | 13.7 | 19.5 | 24.9 | ||
| Rated output current (A) at VT | 1.2 | 1.9 | 3.5 | 6.0 | 9.6 | 12.0 | 19.6 | 30.0 | 40.0 | 56.0 | 69.0 | ||
| Rated output current (A) at CT | 1.0 | 1.6 | 3.0 | 5.0 | 8.0 | 11.0 | 17.5 | 25.0 | 33.0 | 47.0 | 60.0 | ||
| Max. output voltage | Proportional to input voltage: 0...240 V | ||||||||||||
| Max. output freqency | 400 Hz | ||||||||||||
| Power supply | Rated input voltageand frequency | Single-phase 200...240 V 50/60 Hz; Three-phase 200...240 V 50/60 Hz | |||||||||||
| Allowable voltage fluctuation | -15%...+10% | ||||||||||||
| Allowable frequency fluctuation | +5% | ||||||||||||
| Braking torque | At short-time decelaration At capacitor feedback | 100%:<50hz 50%:<60hz | 70%: <50hz 50%: <60hz | Approx 20% | - | ||||||||
| Cooling method | Self cooling*3 | Forced-air-cooling | |||||||||||
*2 - Based on a standard 3-Phase standatd motor.
*3 - Forced air cooling for IP54 models.
MX2 configuration
- Weight [kg] 2.0000
- Height [cm] 23.0
- Length [cm] 24.0
- Width [cm] 15.0
- Stärke [kW] 0,75
- Max Ausgangsfrequenz 400HZ
- Eingangsspannung [V] 230
- Eingangsphasen 1
- Model 3G3MX2-AB007-E
Produkt występuje również pod oznaczeniem:
3G3MX2AB007E, 3G3MX2AB007 E, 3G3MX2AB007-E, 3G3MX2 AB007E, 3G3MX2 AB007 E, 3G3MX2 AB007-E, 3G3MX2-AB007E, 3G3MX2-AB007 E, 3G3MX2-AB007-E
