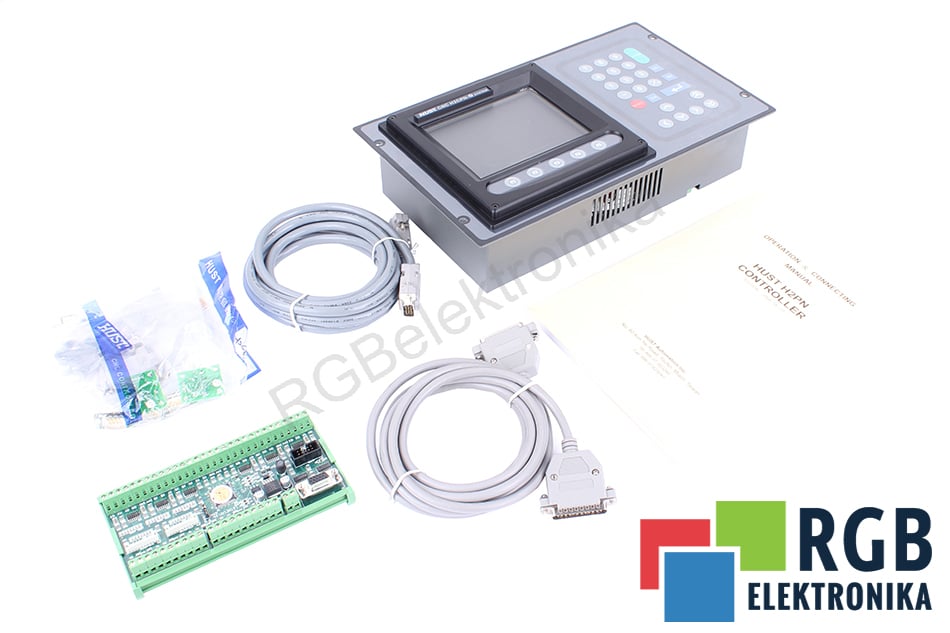

CNC CONTROLLER FOR LATHE MACHINE 2 AXES H2CPN-2 HUST
- Product condition: new
- Warranty: 24 MONTHS
- Dedicated courier: yes
H2CPN-2
PLC technology based driver, dedicated for 2-axis CNC lathe control.
HUST
controls H2CPN-2 series are ideally suited for machine retrofitting and are an attractive
alternative for other controls.
Chosing HUST systems, you bet on:
Functionality - accessories like an additional operator button panel, digital output
modules and thyristor and scattered I/O islands, allow for a flexibility, when meeting user's needs.
Simplicity - trouble-free installation and intuitive handling allow for a quick H2CPN-2
system implementation. Reliability - high precision, stable operation.
Technical parameters
| Number of axes | 2 |
| Screen | 5.6" LCD |
| Setting movement signal | impulse Pull/Dir |
| Maximum size of a CNC program stored in a drive | 512K (bigger programs in packages from external media) |
| Number of digital inputs and outputs | Fast and simple input and output diagnostics (28in/20out) |
| Dimensions | 267x172x75mm |
Features
| ISO programming (Fanuc mode), G-cod and M-cod features | Master/Slave follow features. Simultaneous 2-axis movement |
| X, Z axis control. One axis with encoder loop | Ability to load a program from keyboard |
| Defining circle functions in the program block | Axis error offset |
| Teach-Mode | Program can be adjusted in AUTO-RUN time |
| Full 'follow-up' in threading mode | Position retaining after emergency power outage. |
H2CPN-2 schematics
- Weight [kg] 5.5000
- Height [cm] 27
- Length [cm] 50
- Width [cm] 36
- Model CNC H2CPN-2
Produkt występuje również pod oznaczeniem:
CNCH2CPN2, CNCH2CPN 2, CNCH2CPN-2, CNC H2CPN2, CNC H2CPN 2, CNC H2CPN-2
