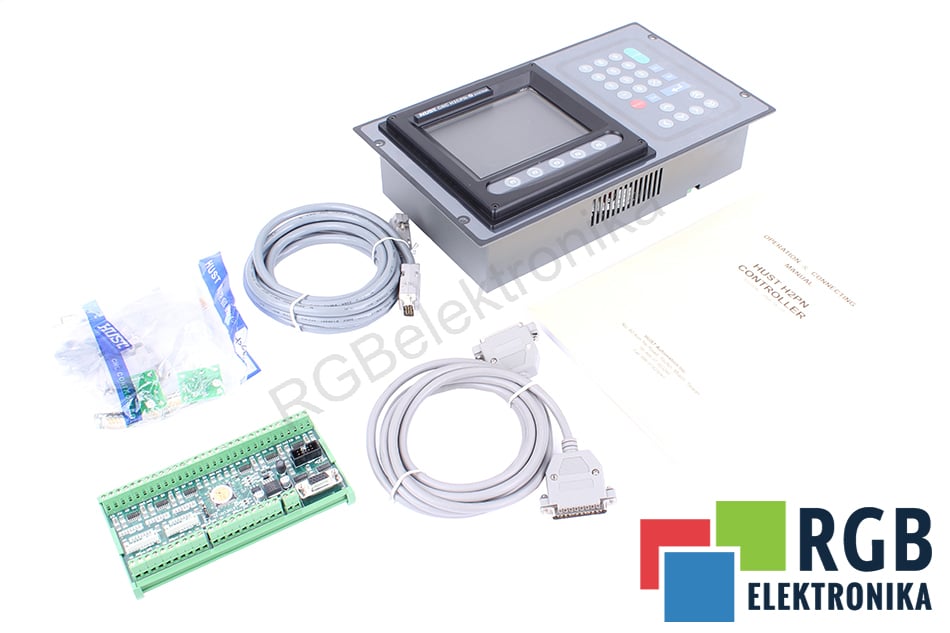

PLC technology based driver, dedicated for 2-axis CNC lathe control.
HUST
controls H2CPN-2 series are ideally suited for machine retrofitting and are an attractive
alternative for other controls.
Chosing HUST systems, you bet on:
Functionality - accessories like an additional operator button panel, digital output
modules and thyristor and scattered I/O islands, allow for a flexibility, when meeting user's needs.
Simplicity - trouble-free installation and intuitive handling allow for a quick H2CPN-2
system implementation. Reliability - high precision, stable operation.
Number of axes | 2 |
Screen | 5.6" LCD |
Setting movement signal | impulse Pull/Dir |
Maximum size of a CNC program stored in a drive | 512K (bigger programs in packages from external media) |
Number of digital inputs and outputs | Fast and simple input and output diagnostics (28in/20out) |
Dimensions | 267x172x75mm |
  |   |
ISO programming (Fanuc mode), G-cod and M-cod features | Master/Slave follow features. Simultaneous 2-axis movement |
X, Z axis control. One axis with encoder loop | Ability to load a program from keyboard |
Defining circle functions in the program block | Axis error offset |
Teach-Mode | Program can be adjusted in AUTO-RUN time |
Full 'follow-up' in threading mode | Position retaining after emergency power outage. |
  |   |
