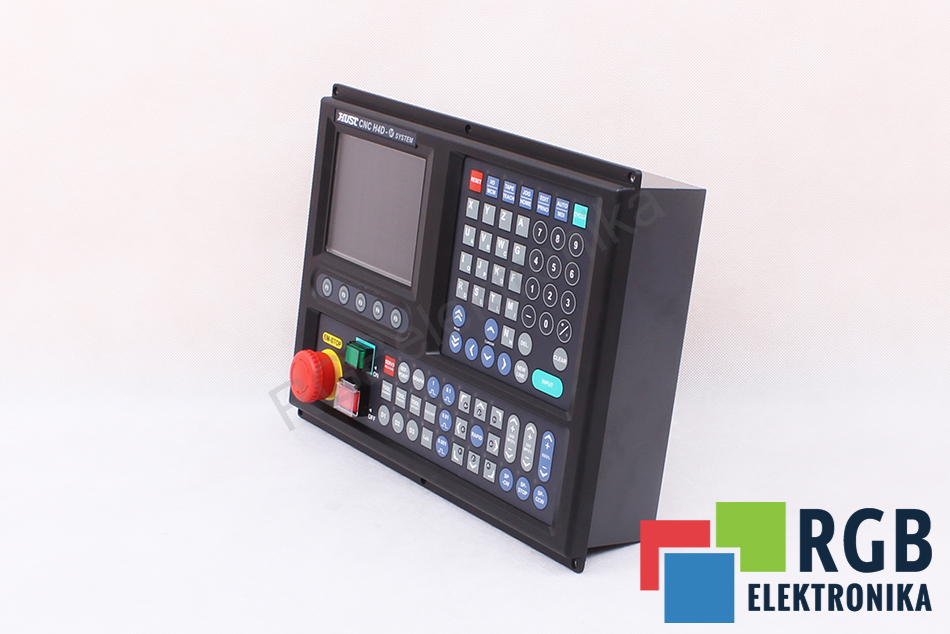

CNC CONTROLLER FOR MILLING MACHINE 3 AXES + SPINDLE H4D-M3 HUST
- Product condition: new
- Warranty: 24 MONTHS
- Dedicated courier: yes
Related Products
Choose
H4D-M
PLC technology based driver, dedicated for 3-axis CNC milling machine
control.
HUST controls H4D-M3 series are ideally suited for machine
retrofitting and are an attractive alternative for other controls.
Chosing HUST
systems, you bet on: Functionality - accessories like an additional operator button
panel, digital output modules and thyristor and scattered I/O islands, allow for a flexibility, when meeting
user's needs. Simplicity - trouble-free installation and intuitive handling allow for
a quick H4D-M3 system implementation. Reliability - high precision, stable operation.
Technical parameters
| Number of axes | 3+1 (3 axes + spindle), spindle control through encoder |
| Screen | 5.6" LCD |
| Setting movement signal | -10 +10V and signals of direction and impulse (pull/dir) |
| Maximum size of a CNC program stored in a drive | 1024K (bigger programs in packages from external media) |
| Number of tools in G43 system memory | up to 40 tools in G43 system memory |
| Number of digital inputs and outputs | Fast and simple input and output diagnostics (24in/16out) |
| Dimensions | 362x267x75mm |
Features
| ISO programming (Fanuc mode), G-cod and M-cod features | Master/Slave follow features. |
| Detection and information about G-code function errors | X, Y, Z axis and spindle with an encoder loop control |
| Macro programs for basic milling operations | Axis error offset |
| Ability to load a program from PC using a USB drive or RS | Incremental or absolute coordinate mode operation |
| Stop and Feed hold feature | Position retaining after emergency power outage. |
H4D-M schematics
- Weight [kg] 7.0000
- Height [cm] 27.0
- Length [cm] 50.0
- Width [cm] 36.0
- Model CNC H4D-M4
