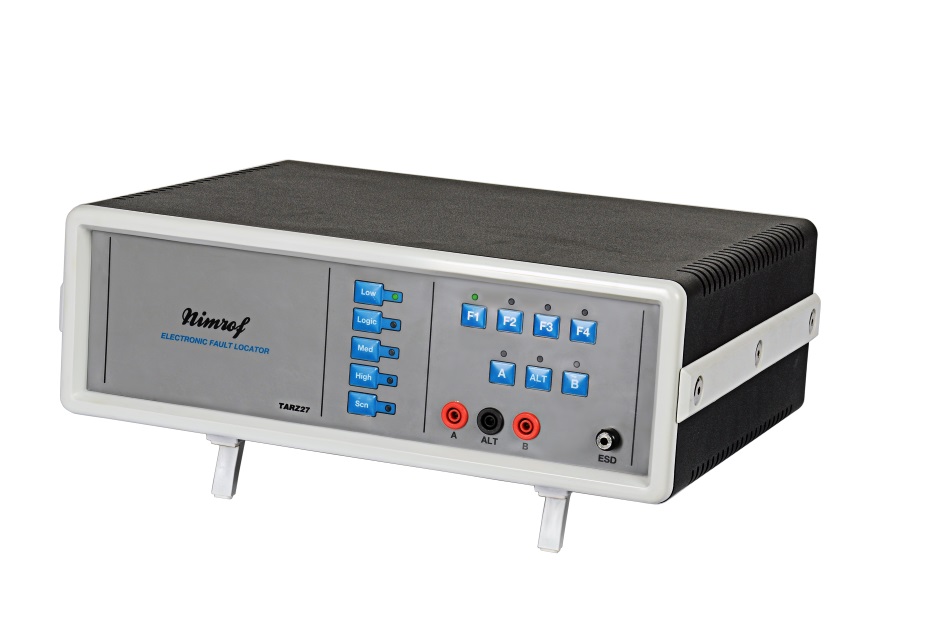

Fault locator electronic boards TARZ27
Nimrof TARZ2 7 and TARZ27-TFT are designed to complement conventional test instruments in the debug and troubleshooting process. Nimrof TARZ27 and TARZ27-TFT are suited for modern varied signal circuit cards where analog and digital are mixed together. It allows to find faulty components on the electronic board in a short time by using power-off test method. Nimrof TARZ27 and TARZ2r-TFT allows for more than 10 various voltage combinations by applying a low current AC signal to two points of electronic equipment. The current flow shows a vertical signature deflection, while the applied voltage shows a horizontal deflection. Together they form a unique V/I signature that represents the overall health of the tested device. Analyzing the signature allows to quickly determine whether the component is good or bad.
Application and main features
- Industrial and Textile Machinery Mainboard
- ECU
- DGS Automatic Transmission Mainboard
- Wall Hung Boiler Mainboard
- TV and Stereo Set Mainboard
- Computer Mainboard
- Mobile Phone Mainboard
- Air Conditioning Mainboard
- Ship Electronics
- AND MANY OTHERS!
| Voltage Levels: | 10v, 15Vv, 20v, 50V |
| Frequency Levels: | 90Hz, 200Hz, 500Hz, 1KHz |
| Waveform: | Sine |
| Screen: | No |
| Device Control: | Computer Software or Front Panel |
| Communication: | USB 2.0 |
| Power: | 220-230 VAC 50-60Hz |
| Scan Mode: | Auto or Manual |
| Panel Connections: | A, B, ALT |
| Size: | 350 x 288 x 115 mm |
| Weight: | 3,750 kg |
|
1. P2P Feature

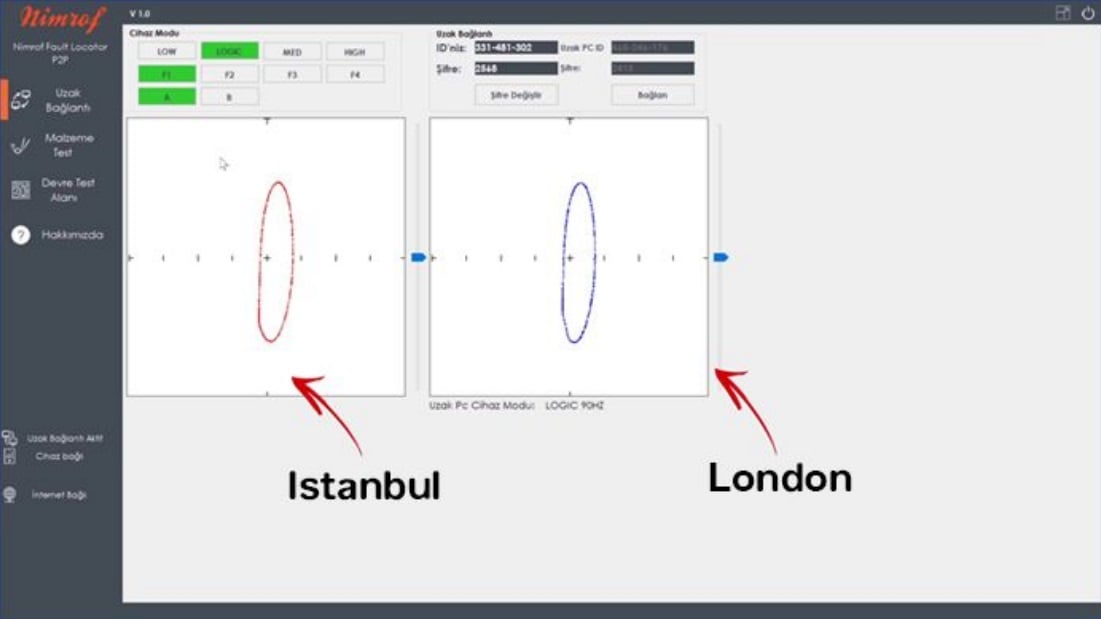

Two device communication over internet. |
2. Component Testing
The registered cards and components in this property are created by Nimrof. These data are with software. New cards and components are transferred to the system with new updates. |
3. Circuit Test Area

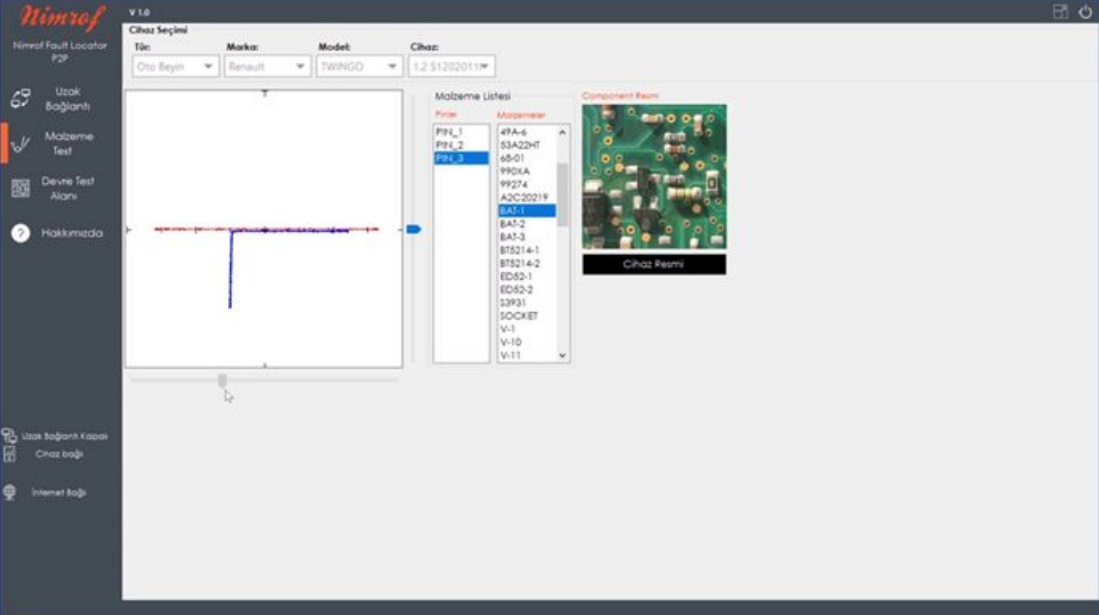

It can also diagnose the fault on the circuit diagram of the card that is selected in the component testing section. |
No Need for a Good Circuit Boards For Troubleshooting - Thanks to Nimrof Home program electronics circuit boards can be saved to computer and while testing faulty circuit board, there is no need to have a good circuit board on site.

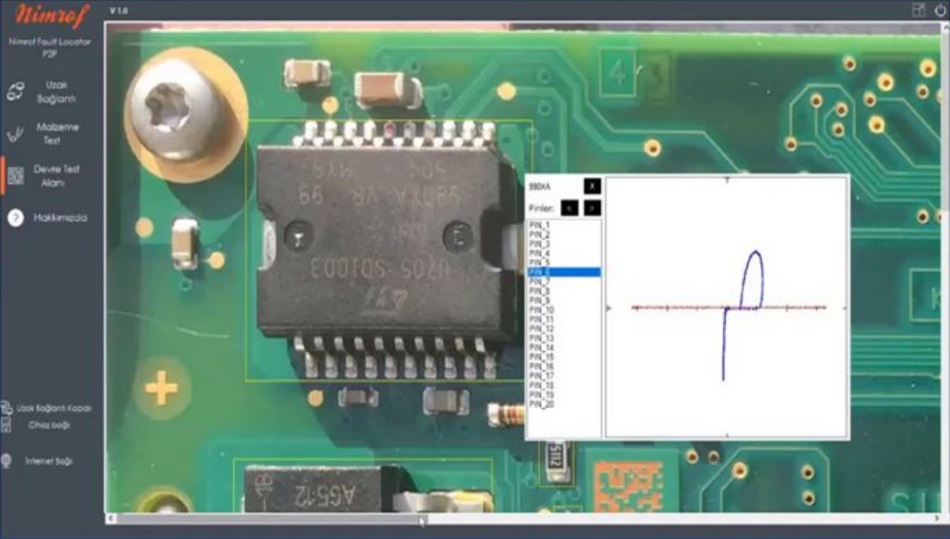

Testing By Power-off Method - It shows the impedance curve by applying a current-limited AC signal across two points of a component.
Components Tested By Nimrof Diagnostic Devices
Passive Components: Capacitors, Resistors, Coils.
Diodes: General purpose, Zener diodes, High voltage, Varactors.
Transistors: NPN and PNP, Bipolar, Darlington, JFET, MOSFET, Unijunction.
UGated Devices: SCRs, TRIACs, Relays.
Optoelectronic Devices: LEDs, LED screens, Photo transistors.
Integrated components: Digital and Analog integrated components.
- Weight [kg] 4.0000
- Model TARZ27
