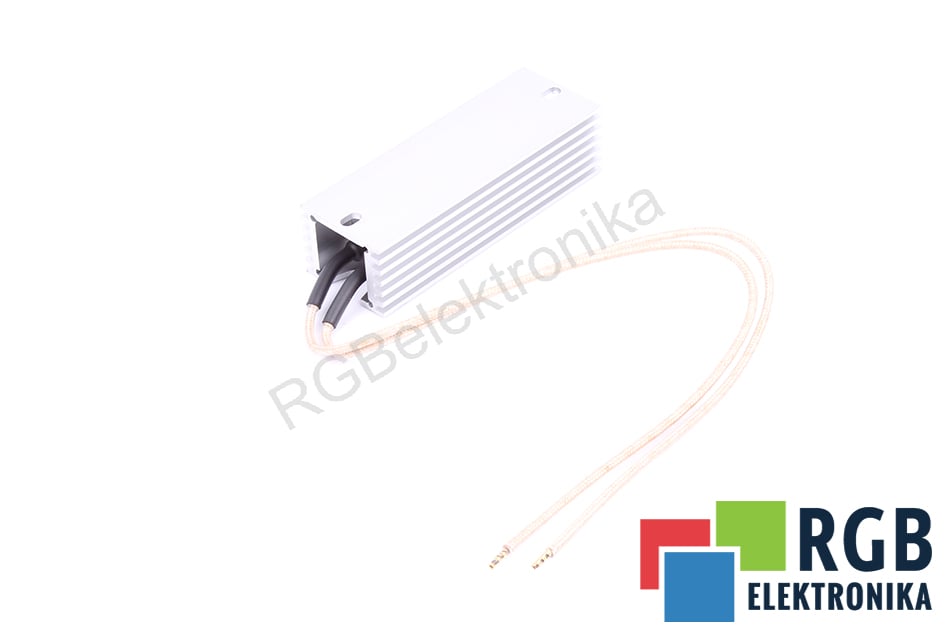

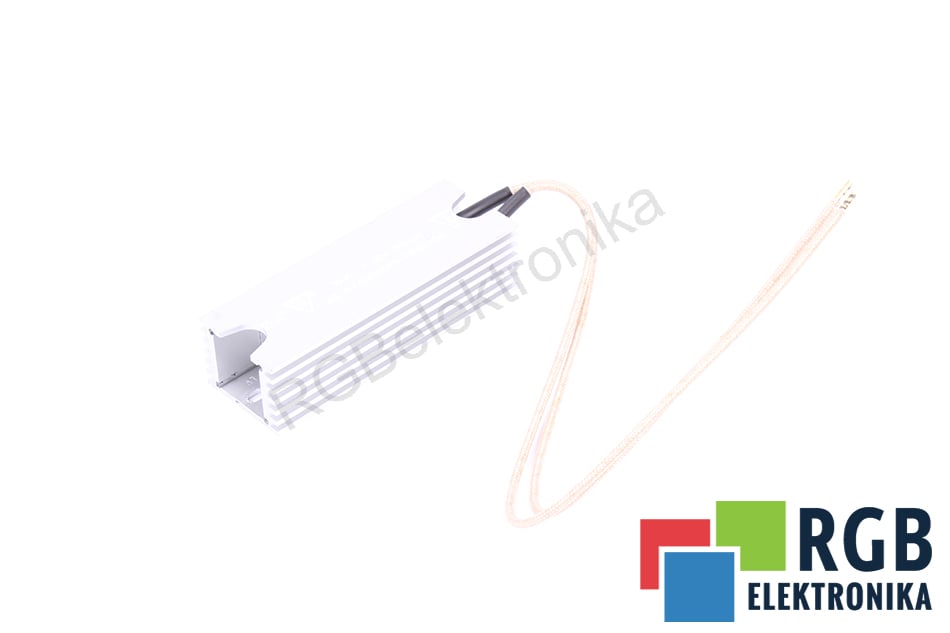

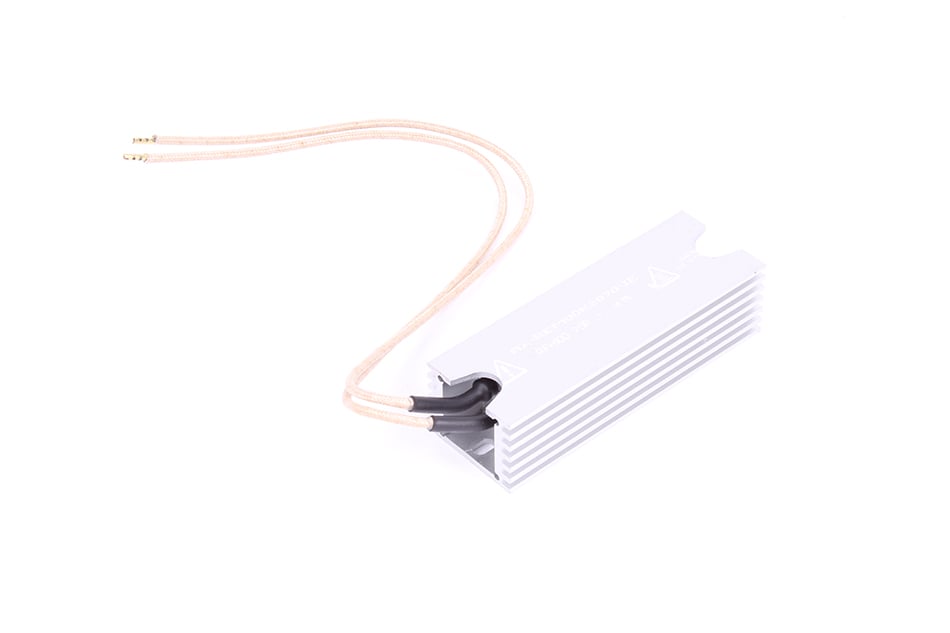

Braking resistors disperse the energy created during the motor braking and transform it into heat.
Braking modules for inverters are used in solutions requiring frequent speed changes of electric motor’s performance.
Inverter manufacturers most often list the types of braking resistors adjusted to specific frequency inverters in the documentation.

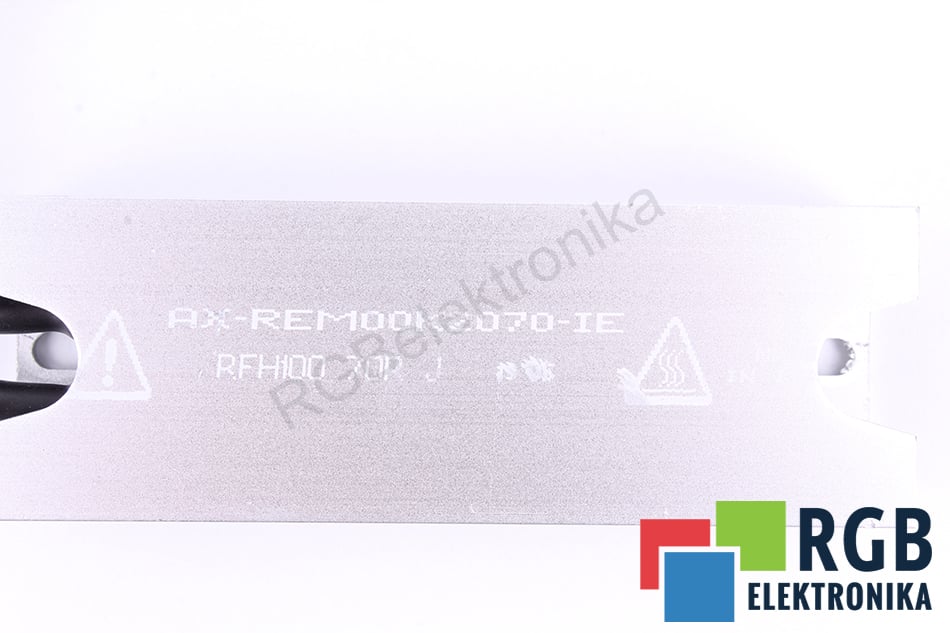

Resistance: 70 OHM
Power: 200 W

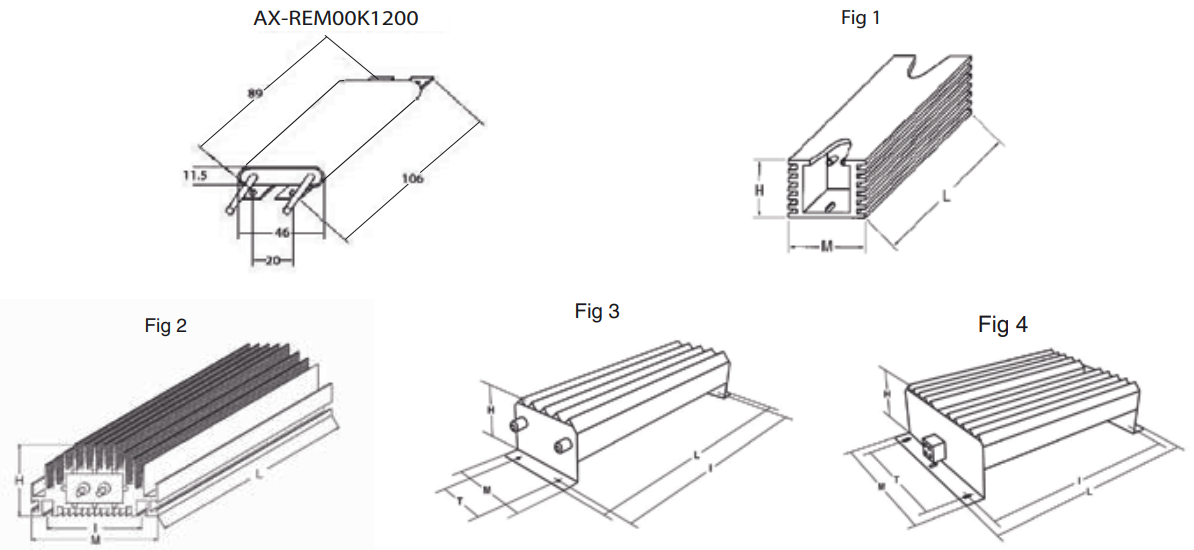

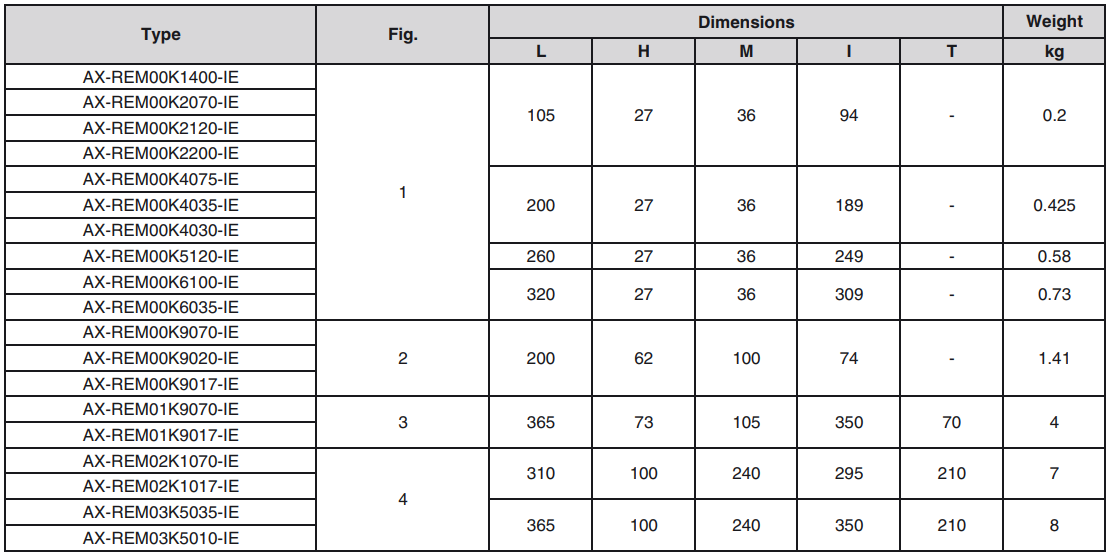

Voltage | Max. motor kW |
Inverter 3G3MX2_ | Connectable min. resistance W |
Inverter mounted type (3% ED, 10 sec max) |
Braking torque % |
Inverter mounted type (10% ED, 10 sec max) |
Braking torque % |
|||
---|---|---|---|---|---|---|---|---|---|---|
1-phase | 3-phase | Order code | Resist Ω | Order code | Resist Ω | |||||
200 V (Single-/ Three-phase) |
0.12 | B001 | 2001 | 100 | AX-REM00K1400-IE | 400 | 200 | AX-REM00K1400-IE | 400 | 200 |
0.25 | B002 | 2002 | 180 | 180 | ||||||
0.55 | B004 | 2004 | AX-REM00K1200-IE | 200 | 180 | AX-REM00K1200-IE | 200 | 180 | ||
1.1 | B007 | 2007 | 50 | 100 | AX-REM00K2070-IE | 70 | 200 | |||
1.5 | B015 | 2015 | AX-REM00K2070-IE | 70 | 140 | AX-REM00K4075-IE | 75 | 130 | ||
2.2 | B022 | 2022 | 35 | 90 | AX-REM00K4035-IE | 35 | 180 | |||
4.0 | – | 2040 | AX-REM00K4075-IE | 75 | 50 | AX-REM00K6035-IE | 35 | 100 | ||
5.5 | – | 2055 | 20 | AX-REM00K4035-IE | 35 | 75 | AX-REM00K9020-IE | 20 | 150 | |
7.5 | – | 2075 | 17 | 55 | AX-REM01K9017-IE | 17 | 110 | |||
11 | – | 2110 | AX-REM00K6035-IE | 35 | 40 | AX-REM02K1017-IE | 17 | 75 | ||
15 | – | 2150 | 10 | AX-REM00K9017-IE | 17 | 55 | AX-REM03K5010-IE | 10 | 95 | |
400 V (Three-phase) |
0.55 | – | 4004 | 180 | AX-REM00K1400-IE | 400 | 200 | AX-REM00K1400-IE | 400 | 200 |
1.1 | – | 4007 | 200 | 200 | ||||||
1.5 | – | 4015 | AX-REM00K1200-IE | 200 | 190 | AX-REM00K2200-IE | 200 | 190 | ||
2.2 | – | 4022 | 100 | AX-REM00K2200-IE | 200 | 130 | AX-REM00K5120-IE | 120 | 200 | |
3.0 | – | 4030 | AX-REM00K2120-IE | 120 | 160 | 160 | ||||
4.0 | – | 4040 | 120 | AX-REM00K6100-IE | 100 | 140 | ||||
5.5 | – | 4055 | 70 | AX-REM00K4075-IE | 75 | 140 | AX-REM00K9070-IE | 70 | 150 | |
7.5 | – | 4075 | 100 | AX-REM01K9070-IE | 70 | 110 | ||||
11 | – | 4110 | AX-REM00K6100-IE | 100 | 50 | AX-REM02K1070-IE | 70 | 75 | ||
15 | – | 4150 | 35 | AX-REM00K9070-IE | 70 | 55 | AX-REM03K5035-IE | 35 | 110 |
