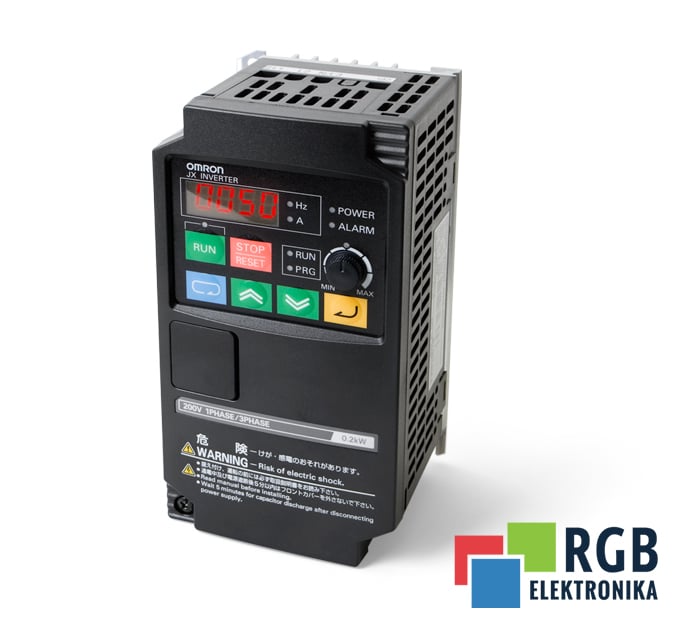

The JX provides a compact and complete solution to a whole range of simple applications. The RS485 Modbus is built into the RJ45 port of the inverter front, making it very easy to add inverters into the network without any extra option boards. Therefore, saving costs and space.
V/f controlled inverter |
Side by side mounting |
Built-in RS-485 Modbus |
Overload detection function (150% during 60 s) |
PID |
Micro-surge voltage supression |
Automatic energy saving |
Emergency shut-off |
Second motor setting |
Auto carrier-frequency reduction |
PTC thermistor input |
Cooling fan switch control |
PC configuration tool: CX-Drive |
CE, UL, cUL, RoHS |
Single-phase: 3G3JX_ | AB002 | AB004 | AB007 | AB015 | AB022 | - | - | - | ||
Three-phase: 3G3JX_ | A2002 | A2004 | A2007 | A2015 | A2022 | A2037 | A2055 | A2075 | ||
Motor kW *1 | Applicable motor capacity | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | |
Output characteristics | Inverter capacity kVA | 200 V | 0.4 | 0.9 | 1.3 | 2.4 | 3.4 | 5.5 | 8.3 | 11.0 |
240 V | 0.5 | 1.0 | 1.6 | 2.9 | 4.1 | 6.6 | 9.9 | 13.3 | ||
Rated output current (A) | 1.4 | 2.6 | 4.0 | 7.1 | 10.0 | 15.9 | 24.0 | 32.0 | ||
Max. output voltage | Proportional to input voltage: 0...240 V | |||||||||
Max. output freqency | 400 Hz | |||||||||
Power supply | Rated input voltageand frequency | Single-phase 200...240 V 50/60 Hz; three-phase 200...240 V 50/60 Hz | ||||||||
Rated input current (A) three-phase 200 V | 1.8 | 3.4 | 5.2 | 9.3 | 13.0 | 20.0 | 30.0 | 40.0 | ||
Rated input current (A) single-phase 200 V | 3.1 | 5.8 | 9.0 | 16.0 | 22.5 | - | - | - | ||
Allowable voltage fluctuation | -15%...+10% | |||||||||
Allowable frequency fluctuation | +5% | |||||||||
Built-in filter | Emc filter (c1 single phase) | |||||||||
Braking torque | At short-time decelaration At capacitor feedback | Approx. 50% | 50% for 3-phase 20 to 40% for 1-phase | Approx 20% to 40% | Approx 20% | |||||
Cooling method | Self cooling | Forced-air-cooling |
