ERSASCOPE 2 BGA INSPECTION SYSTEM BGA OPTICAL INSPECTION BGA STATION ENDOSCOPE
ID:
Dostępność:
Czas realizacji:
Na zamówienie
Dostawa:
Sprawdź koszt dostawy
Kod produktu:
ERSASCOPE2
- Stan urządzenia: używane
- Sprzęt przetestowany i wyczyszczony
- Gwarancja: 24 miesiące
- Kurier dedykowany: tak

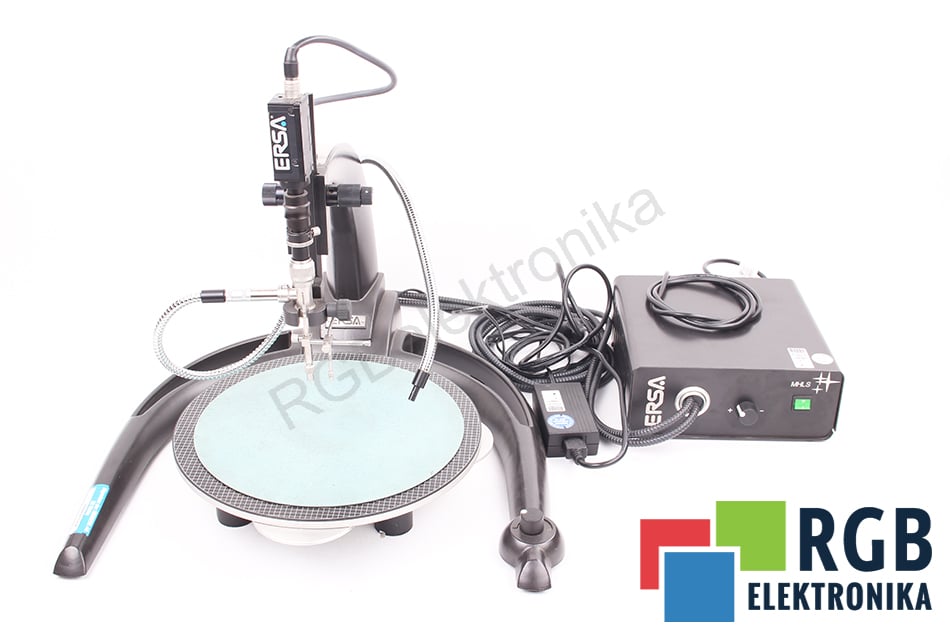

ERSASCOPE 2 ERSA
100% in working condition. Photographies shows all parts that are included in set - please check it before bid.
If you will have any question about the ERSASCOPE please send us a message.
Typical applications
High end endoscope inspection system including three quick change heads:
- - 90° BGA head (approx. 280 µm clearance)
- - 90° Flip Chip head (approx. 30 µm clearance)
- - Excellent performance at low temperature starting torque
- - 0° wide angle head, e.g. for VIA inspection without tilting of optics
7 movement axes for flexible adjustment to practically every required viewing angle
High-performance, dimmable LED lighting in daylight colour
High quality 1.3 megapixel CCD colour camera with USB connection
XY rotary table with fine adjust wheels, freely positionable under the optics
Optimal light management:
- - inspection heads with fibre optic stereo front light
- - mechanically coupled, swivelling and rotating backlight
- - fibre optic gooseneck for targeted lighting from all sides
- - separate setting of light quantity for all light guides
- - with light brushes, light extension and iris aperture
Focusing scale to be used with calibration groups in the ImageDoc EXP measuring function
Complete set with the most important accessories and storage case
Technical data
| ERSASCOPE Stand | |
| Dimensions (W x D x H) in mm | 500 x 520 x 400 |
| Weight in kg | 5 |
| Style | Aluminium die casting, Z-axis micrometer adjustment; intake for ERSASCOPE inspection optics |
| OAntistatic Design (y/n) | yes |
| Connection | Fibre optic light brushes with LEMO connectors for ERSASCOPE optiks and 15 mm connector plug for light source, additional 1,000 mm light guide gooseneck for light brush, integrated USB 2.0 camera connection |
| Interchangeable optics 0° top view head | |
| Style | Stainless steel, integrated optics, three-point light via fibre optics |
| Application | Top view inspection with wide-angle view at a high magnification |
| Total length in mm | 24 |
| Weight in g | 5 |
| Magnification | up to 250x (native on a 20" TFT-monitor with 1,600 x 1,200 pixels) |
| Footprint | Diameter 6 mm |
| Field angle | 38° |
| Focus range | 3 - ? mm |
| Interchangeable optics 90° BGA Head | |
| Style | Stainless steel, integrated optic, stereo light via fibre optics, reinforced prism deflecting prism 90° |
| Application | Inspection of concealed solder joints for gap dimensions 100 to 1,500 µm (BGA, PLCC, QFP etc.) |
| Total length in mm | 32 |
| Weight in g | ca. 4 |
| Magnification | up to 425x (native on a 20" TFT-Monitor with 1,600 x 1,200 pixels) |
| Footprint | 3 mm x 6 mm |
| Field angle | 23° |
| Focus range | 0 - ? mm |
| Interchangeable optics 90° Flip Chip Head | |
| Style | Stainless steel, integrated optics, stereo light via fibre optics, mirror deflecting optic 90° |
| Application | Inspection of concealed solder joints for gap dimensions 100 to 1,500 µm (BGA, PLCC, QFP etc.) |
| Total length in mm | 27 |
| Weight in g | 3 |
| Magnification | up to 700x (native on a 20" TFT-Monitor with 1,600 x 1,200 pixels) |
| Footprint | 1,5 mm x 4,5 mm (0,6 mm x 4,0 mm) |
| Field angle | 23° |
| Focus range | 0 - ? mm |
| Inspection optic ERSASCOPE 2 basic unit | |
| Total length in mm | 155 |
| Weight in g | 170 |
| Principle | Optical endoscope system |
| Style | Stainless steel, integrated optics, directed lighting via integrated optical fibre light guide |
| Light control | Separate iris for front and back lights |
| Backlight attributes | Mechanically connected, height-adjustable, pivoting in two axis, changeable deflecting prism |
| Focus adjustment | Focus ring with micrometer scale (for ImageDoc EXP calibration groups) |
| Connection | LEMO connector for light supply, quick-exchange connector forERSASCOPE inspection heads, optical outlet M12x1 (C-mount via TV-adapter) |
| Inspection Camera | |
| Style | Premium CCD colour camera with digital image transmission |
| Resolution | 1,280 x 1,024 pixel (1,3 megapixel, SXGA, 4:3, sensor 1/3") |
| Connection | C-mount lens connector, USB 2.0 |
| Energy supply | via USB 2.0 |
| Light source | |
| Style | High power LED light source, ca. 5,800 K colour of ligh |
| Brightness | approx. 470 lm with fused fibre 5 mm, approx. 640 lm with fibre 8 mm (1,000 mm length) |
| Life span | approx. 30,000 h (70% brightness) |
| Power consumption | max. 65 W |
| Energy supply | 24 V DC / 5420 mA |
| Nominal voltage in V AC | 100 - 240 (wall wart 24 V DC outlet) |
| Test symbol | CE |
| Weight in kg | 2,1 |
| Antistatic Design (y/n) | yes |
| Dimensions (W x D x H) in mm | 170 x 196 x 98 |
| Connection | 15 mm connector light outlet, ESD bush, DC bush, USB 2.0 for remote controll, jack connector 2.5 mm for pedal switch |
| Inspection table | |
| Style | XY table with fine adjustment, rotatable, mounted on ball bearing, aluminium, with four additional support pins |
| Dimensions (W x H) in mm | diameter 320 x 80 |
| Traversing range | 80 mm in X and Y direction, 360° rotatable, lockable in 90° steps |
| Weight in kg | 5 |
| Antistatic Design (y/n) | yes |
- Waga [kg] 5.0000
- Model ERSASCOPE 1
