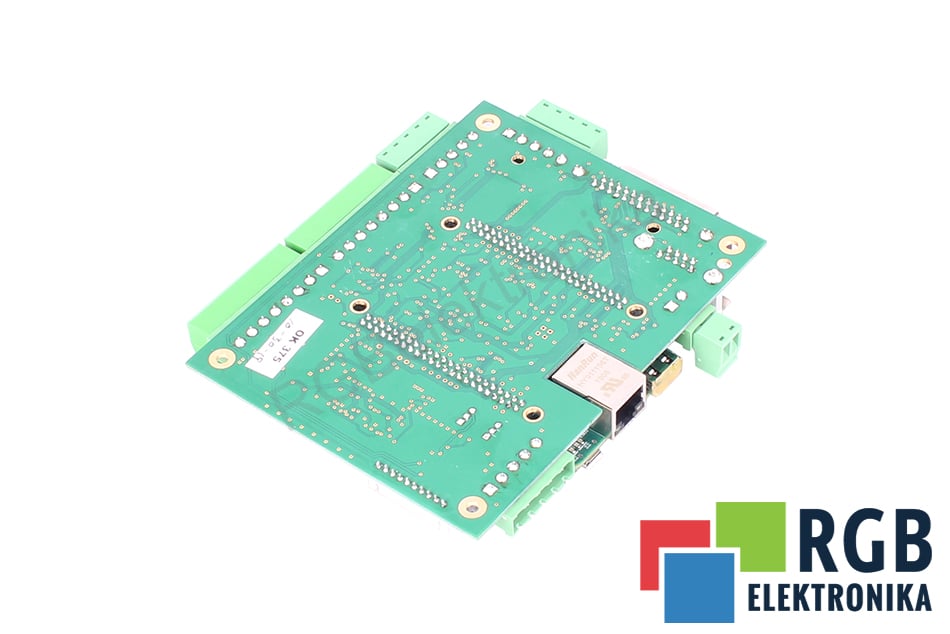

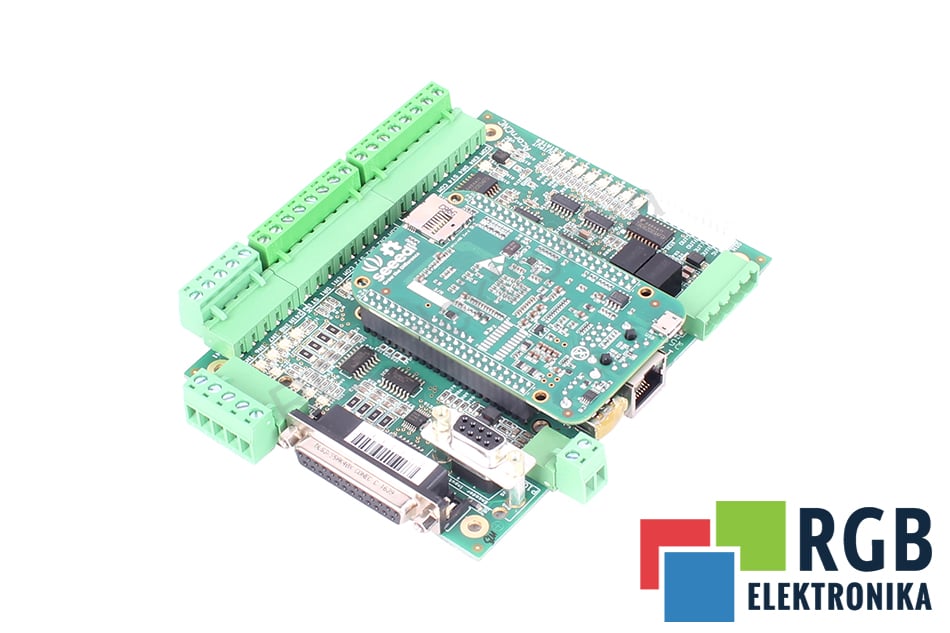

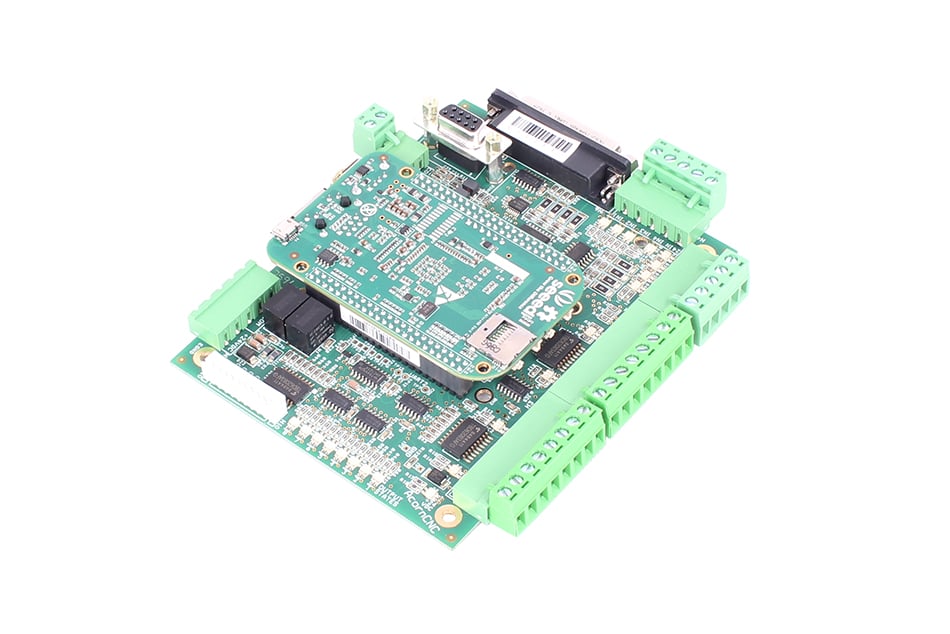

Acorn CNC control board is the connection high quality software and control board.
This system let's You controll 4 axis and uses industry standards. Acorn utilizes an integrated 1Ghz ARM Cortex A8 Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection.
Acorn is the pefrect solution for many types of machine tools such as: CNC milling machines, lathes, a wide variety of CNC routers, plasma, and to 3D printers and other specialty applications.Is the very attractive solution and alternative for retrofit and build machines.
FUNCTIONALITY: A wide possibility to apply Acorn boards. Compatible with small to large axis motors of all types and can be used with most any AC brushless servo motor drive. Centroid recomends Yaskawa engine but nothing prevents you from connecting with any brand engine. Software CNC12 is compatible with G i M code and systems CAD/CAM.
SIMPLICITY: Easy to installation, free software to download from producer website, fast tool learning with the Intercon function, lot of instruction movies.
RELIABILITY: high precision, stable work, high quality.

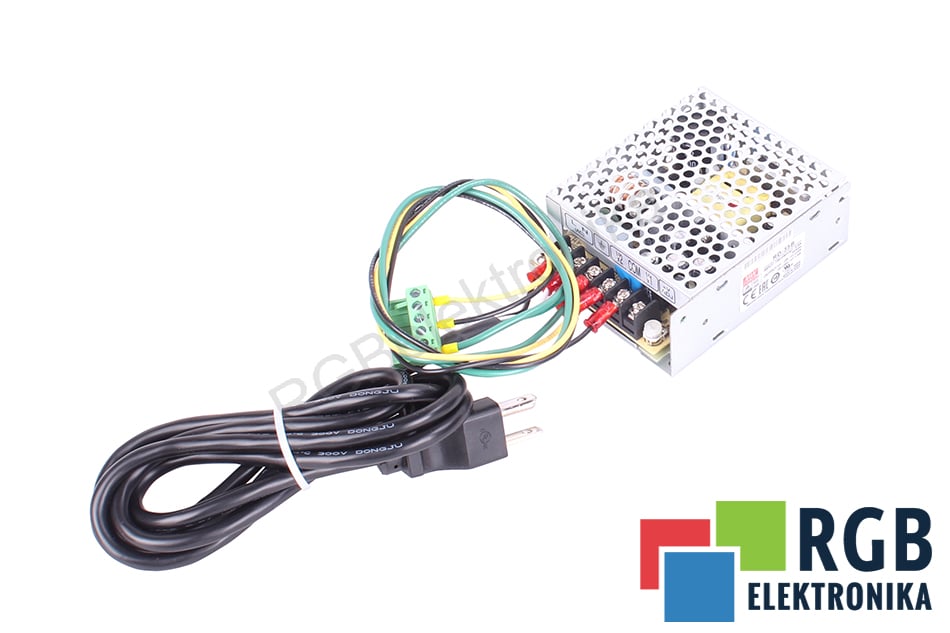

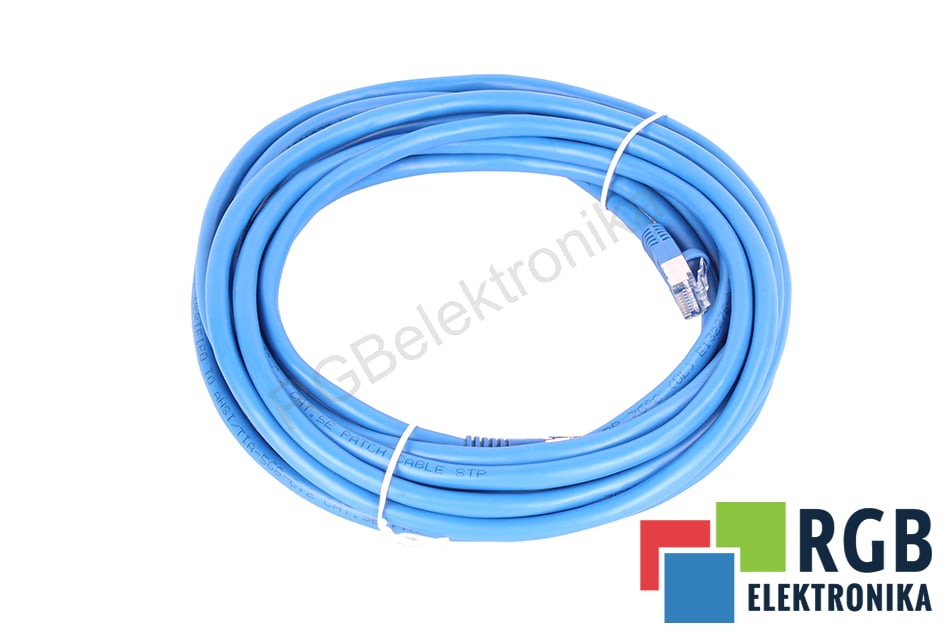

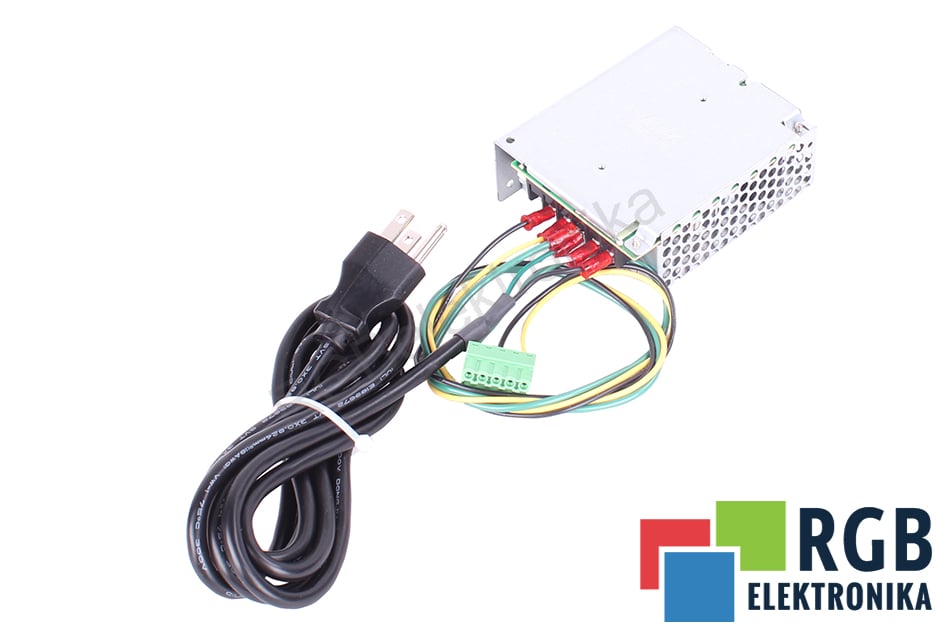

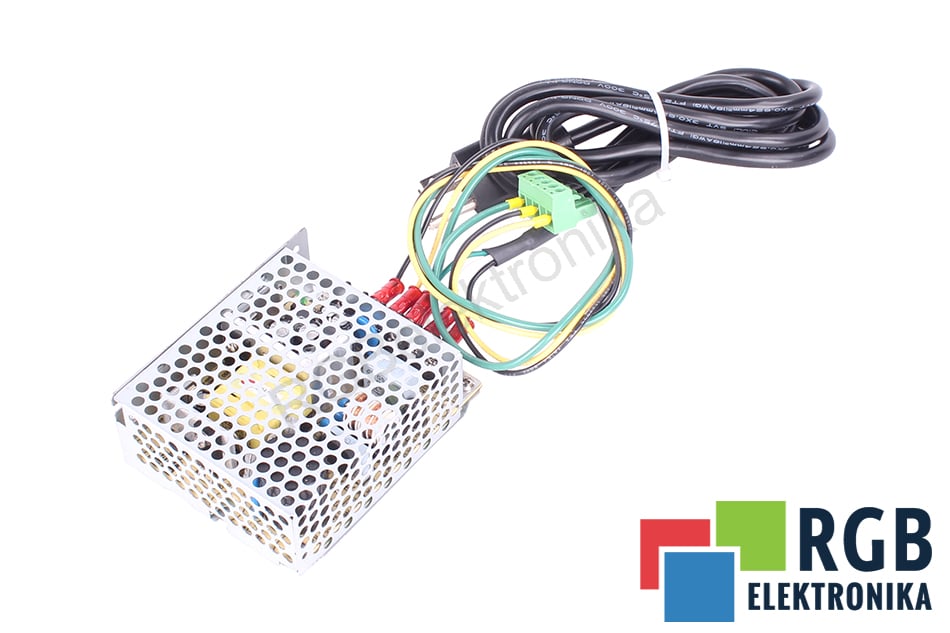

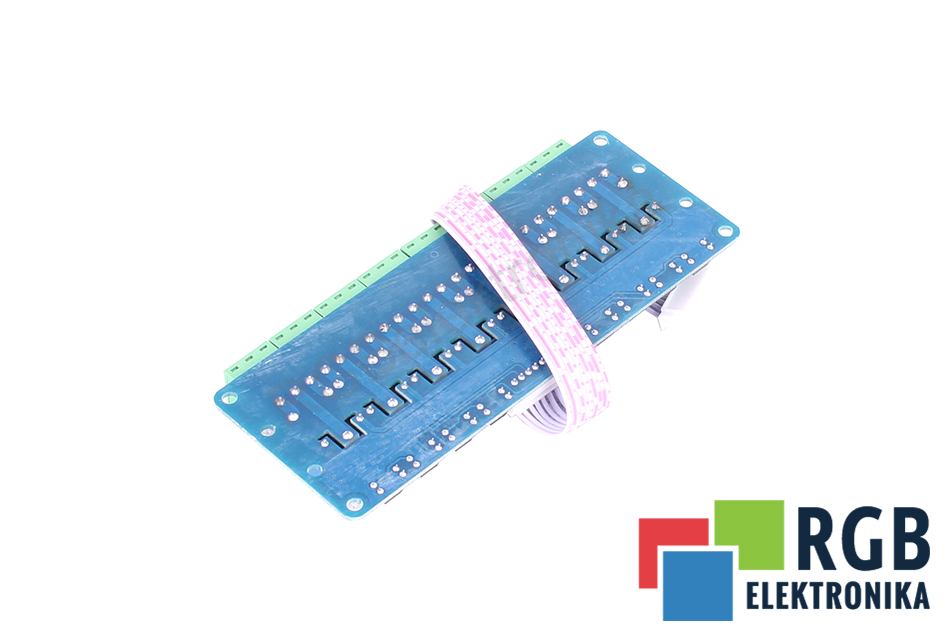

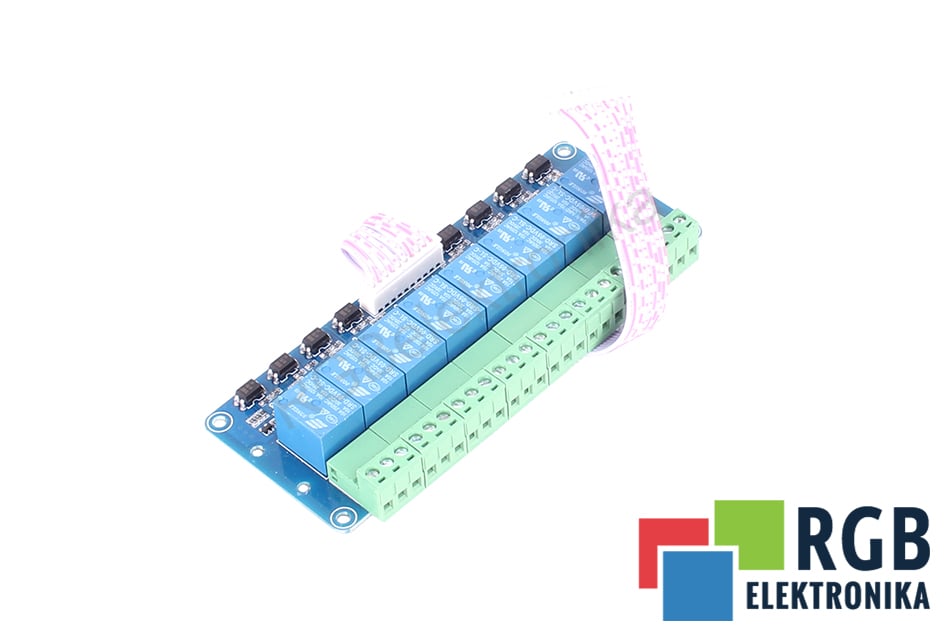

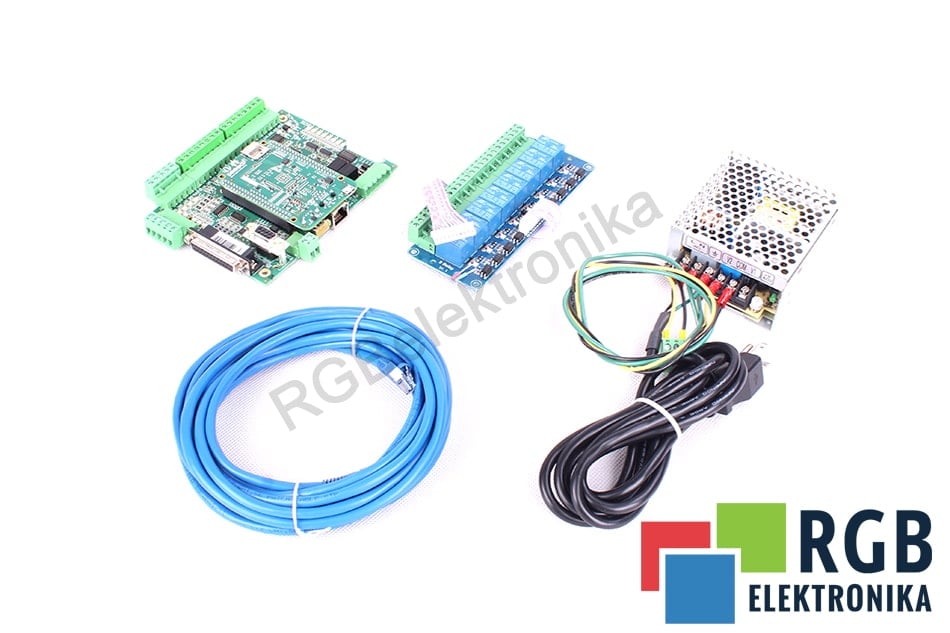

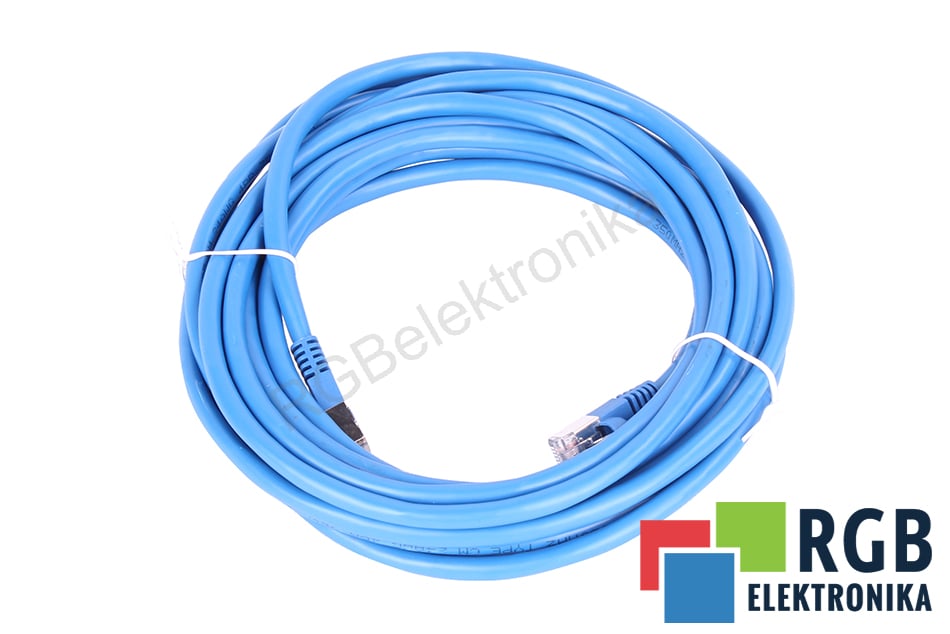

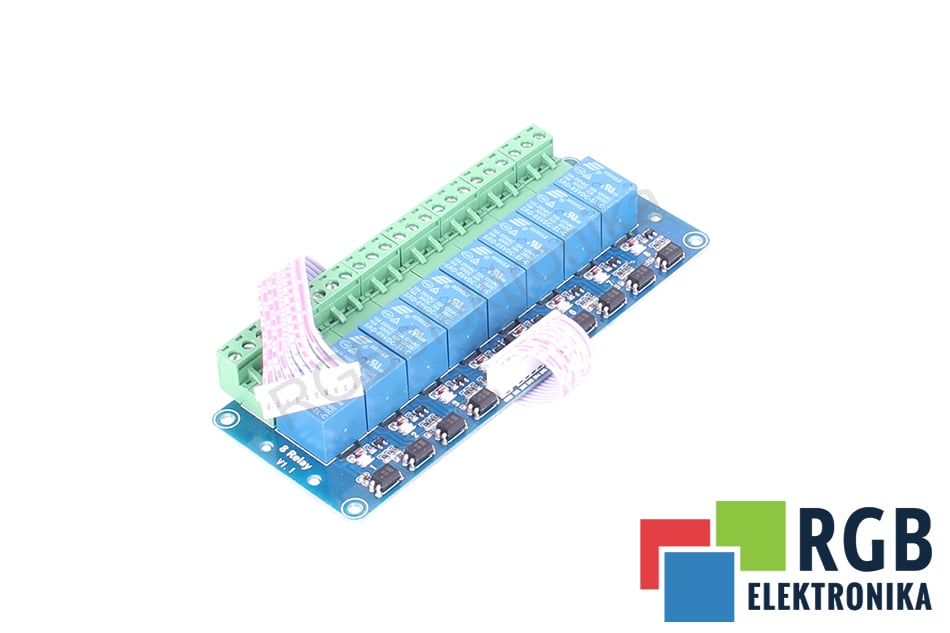

Centroid Acorn CNC controller kit includes:
Maximum number of Axes | 4 |
Compatible with Mills, Lathes, Routers and other specialty machines | Yes |
AC Servo Motor/Drive compatible | Yes |
DC Servo Motor/Drive compatible | Yes |
Stepper Motor/Drive compatible | Yes |
Built in Motion Control CPU | Yes |
Built in DC servo motor amplifier | No |
Built in PLC | Yes, 8 In, 8 Out (two relay) |
Optically Isolated Inputs | Yes |
On board relay output types | 2SPST |
Base Centroid CNC software included with CNC control board price | Yes |
Uses Standard G and M codes | Yes |
Probing and Digitizing compatible | Yes |
Compression and Rigid Tapping Compatible | Yes |
Automatic Tool Measurement Compatible | Yes |
Spindle Encoder feedback,w/ RPM display | Yes |
Lathe Constant Surface Speed | Yes |
Lathe Threading | Yes |
Compatible with Windows 10 | Yes |
Centroid Touch Screen Operator Control Panel Compatible | Yes |
Xkeys, Xbox Controller/Panel Compatible | Yes |
Centroid CNC Console Compatible | No |
Keyboard Jogging and controls compatible | Yes |
Encoder Expansion Board Compatible | No |
PLC Expansion Board Compatible | No |
Analog IN/OUT Expansion Board Compatible | No |
CNC Configuration Wizard | Yes |
Built in Encoder ports | 1 |
Maximum Inputs and Outputs | 8 In/ 8 Out |
Maximum No of Encoder connections | 1 |
Maximum No of Analog outputs | 1 |
Velocity Mode | No, (Step and Direction only) |
Position Mode | No, (Step and Direction only) |
Real Time Hardware Based Step and Direction Output | Yes |
Axis motor tuning | Yes, Accell/Decell |
Gecko Drive Compatible | Yes |
Yaskawa, Delta, Teknic, DMM, Estun, Teco compatible | Yes |
G code Smoothing | Yes |
Paired Axis capability | Yes, hardware and software techniques |
Any axis can be Linear of Rotary Axis | Yes |
Rotary Table Compatible | Yes |
Spindle Motor can run on single phase 220-240 VAC | Yes |
