SERVOMOTOR 1,5KW 5NM 3000RPM WITH BRAKE + DRIVER 2,4KW 3X220V SERVO KIT
ID:
ID19702
Verfügbarkeit:
Vorlaufzeit:
auf Anfrage
Lieferung:
Enter shipping destination
Artikelnummer:
110SYM05030BSGAS30AFNEW
- Zustand des Gerätes: neu
- Garantie: 24 MONATE
- Dedizierter Kurier: Ja
Zubehör
Wahlen Sie

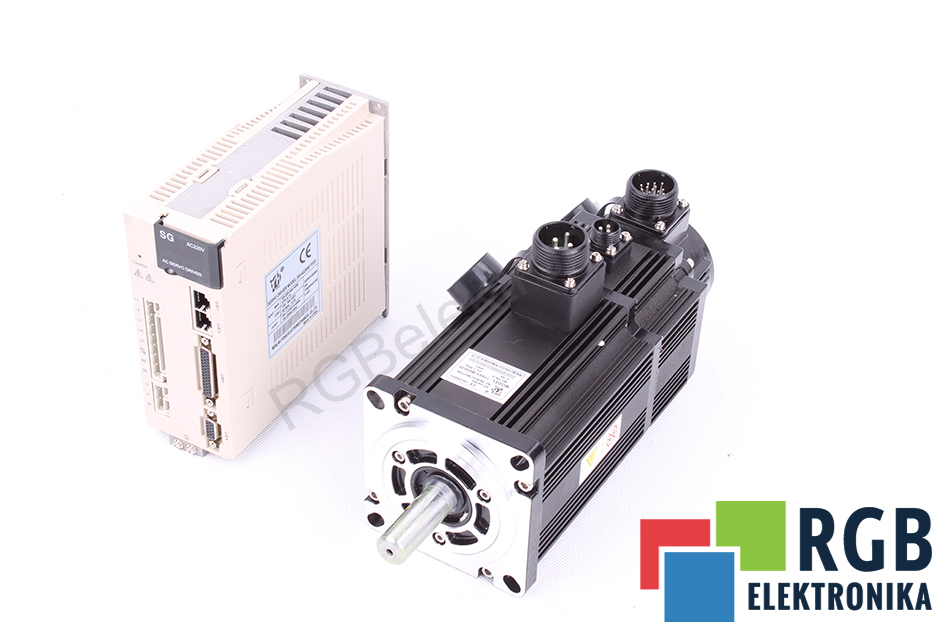

SERVOMOTOR 1,5KW 5NM + SERVODRIVE 2,4KW
Servoamplifiers and servomotors have been widely used for many years in nearly every industry. CNC machines, packaging machines, textile machines and 3D printers - these are just a few examples of devices that make use of servomotors and servodrives. Every servo drive must be of the highest quality worksmanship and be resistant to harsh industrial environments. If you are having problems selecting an appropriate drive, please don't hesitate to contact us!
Our servo kits come with a 12-month guarantee, with service to be carried out at our site in Wroclaw.
Technical data
| SERVO MOTOR 110SY-M5030 | |
| Rated Power, kW | 1,5 |
| Rated Current, A | 5 |
| Rated Torque, Nm | 5 |
| Max Torque, Nm | 15 |
| Rated Speed, rpm | 3000 |
| Frame Size, mm | 110x110 |
| Max Speed, rpm | 3300 |
| Rotor Inertia, Kg m² | 0,85*10^(-4) |
| Encoder | Tamagawa 2500ppr |
| Input Voltage, V | 3x220V |
| Motor length, mm | 205 |
| Motor weight, kg | 7 |
| Brake | Yes |
| Wiring | Encoder Cable 5m, power cable 5m |
| Additional accessories | Shaft key |
| AC SERVO DRIVE SG-AS30AF | ||
| MODEL | SG-AS30AF | |
| Output power, kW | 0.8-2.4 | |
| Motor ratedtorque, Nm | 4.0-15.0 | |
| Input power supply | 3-phase AC 220v , -15%∼+10%, 50/60HZ | |
| Applicable environment | Temperature | Work:0∼40°C，store: -40°C∼50°C |
| Humidity | 40%-80%(no condensation) | |
| Atmospheric pressure | 86-106kpa | |
| Control way | Position control,speed control | |
| Regeneration brake | built-in | |
| Control characteris tics | Speed frequency response | ≥250HZ |
| Speed fluctuation rate | <±0.03(load0∼100%);<±0.02(load-15%+10%) (numerical value corresponding to rated speed ) | |
| Timing ratio | 1:5000 | |
| Pulse frequency | ≤500kHz | |
| Control input | 1.Servo enable 2.Alarm clear 3.CCW drive stops 4.CW drive stops. 5.Deviator clear / speed selection 1 6.Instruction pulse disable/ speed selection 2 | |
| Control output | 1.Servo ready to output 2.Servo alarm output 3.Positioning completion output /speed in position output 4.Mechanical brake output | |
| Position control | Input mode | 1,pulse+symbol 2.CCW pulse/CW pulse 3.2-phaseA/BThe orthogonal pulse |
| Electronic gear ratio | 1∼32767/1∼32767 | |
| Feedback pulse | 2500 Line/turn | |
| Speed control | 4 kinds of internal speed | |
| Acceleration and deceleration function | Parameter setting acceleration/deceleration time 1ms ∼10,000ms（0r/min← →1000r/min） | |
| Monitoring function | Speed, current position, instruction pulse accumulation, position error, motor torque, motor current, linear speed, rotor absolute position, instruction pulse frequency, running state, input/output terminal signal etc. | |
| Protection function | Overspeed, overvoltage / undervoltage of main power, overcurrent, overload, brake abnormity, encoder abnormity, control power abnormity, position out-oftolerance etc. | |
| Applicable load inertia | Less than 5 times of motor inertia | |
Drawings 110 series
FLEXIBLE PLUM COUPLINGS
Our stock includes a wide range of flexible plum couplings, which perfectly match our available servomotors. All available couplings can be found at our online store here
CHECK OTHER TYPES!
Products are available in several versions. If a motor has too little power or torque, an alternative product can be found here.
If you have damaged servomotors or servo drives, we offer you our services. All information on industrial automation repair at our company can be found at - www.rgbelektronika.pl
- Weight [kg] 10.0000
- Model 110SY-M05030-B + SG-AS30AF
